Vehicle Info NeededMOROSOPART NUMBER: 710-20431

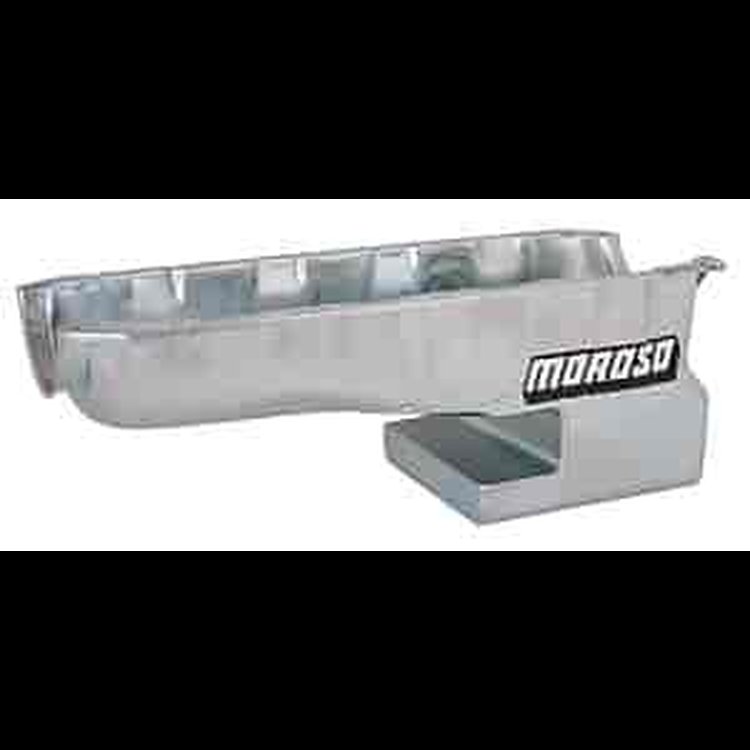

Street/Strip Oil Pan Fits 1962-1967 Chevy II
$43099
3 left in stock
Ships Today
Lowest Price GuaranteeBig Block Chevy
Street/Strip Oil PanFits 1962-1967 Chevy II (without Power Steering) 1955-1957 Chevy Transmission must be in stock location Big Block Chevy Mark IV Deep Sump Wet Sump 7-quart capacity 9" Depth Clear Zinc finish
- Notched pan rails accept strokes up to 4.250 in. w/ steel rods, 4.090 in. w/ aluminum rods
- Notched rear sump clears steering linkage
- Compatible with most starter/flywheel combinations
Note: Oil pan capacities do not include oil filter capacity
Recommended Pickup:
High-Performance Oil Pans
Moroso Street/Strip Oil Pans are for street-performance vehicles that occasionally see track time. Some tanks are modified with either a deep or a kicked-out sump for increased capacity to improve oil control under hard acceleration and help the engine run cooler. Moroso has designed these oil pans for simple bolt-on installation in a production chassis.
Part TypeOil Pan
Product LineMoroso Street/Strip Oil Pans
BrandMOROSO
Package Height11.5
Package Width12.0
Package Length26.25
Weight13.0 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledNo
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishClear zinc
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.25 in (107.95 mm)
Gaskets IncludedNo
Oil Pan Depth9 in (228.6 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationPassenger side
Part FitmentDirect Fit
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number20431
Package Qty1
Package TypeEA
