Street/Strip Oil Pan Big Block Chevy Mark IV

Vehicle Info Needed

MOROSOPART NUMBER: 710-20460

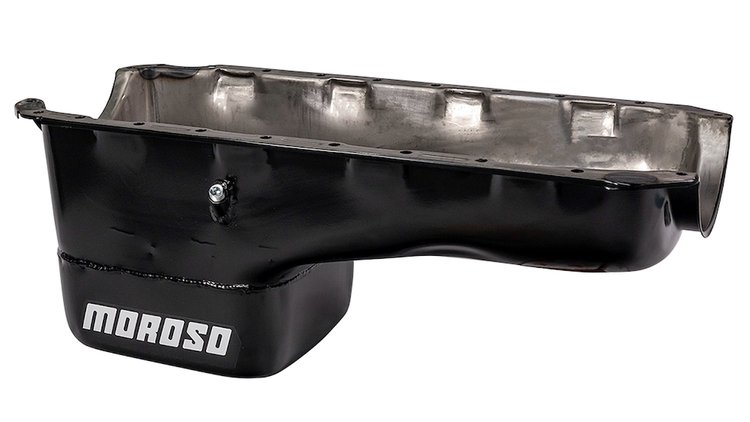

Street/Strip Oil Pan Big Block Chevy Mark IV

Name: Street/Strip Oil Pan Big Block Chevy Mark IV
Brand: MOROSO
SKU: 710-20460
Price: 340.94 USD
Availability: InStock

^$340⁹⁴

Ships on Sep 29, 2026

Lowest Price Guarantee

Big Block Chevy

Street/Strip Oil Pan

Big Block Chevy Mark IV

Deep Sump

Wet Sump 8-quart capacity

9.75" Depth

Black Finish

Fits in most chassis except 1962-67 Chevy II, V8 Vega/Monza, and 1955-57 Chevy
Notched pan rails accept strokes up to 4.250 in. w/ steel rods, 4.090 in. w/ aluminum rods
Stock Style Baffle
Compatible with most starter/flywheel combinations

Note: Oil pan capacities do not include oil filter capacity

Recommended Pickup:

710-24450 -- Fits Moroso Big Block Chevy Race Pump 710-22150, 710-22160 or 710-22162 and Standard or Hi-Volume Stock Oil Pumps

Part TypeOil Pan

BrandMOROSO

Package Height11.0

Package Width11.0

Package Length26.5

Weight13.4 PG

Part CategoryPerformance Parts

Oil Pan Capacity8 quarts

Hardware IncludedNo

Dipstick ProvisionYes

BaffledYes

Sump StyleWet

Pickup IncludedNo

Drain Plug Thread Size (In.)1/2-20

QuantitySold individually

Oil Pan FinishBlack

Oil Pan MaterialSteel

Maximum Stroke With Oe Rod4.25 in (107.95 mm)

Gaskets IncludedNo

Oil Pan Depth9.75 in (247.7 mm)

Rear Main Seal Style2-piece

Sump LocationRear

Crank Scraper IncludedNo

Windage Tray IncludedNo

Dipstick LocationPassenger side

Part FitmentDirect Fit

Kicked OutNo

Stroker ClearancedYes

Vendor Part Number20460

Package Qty1

Package TypeEA
