Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

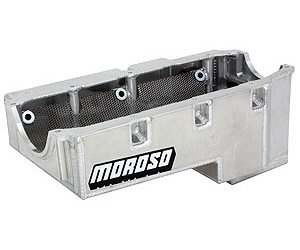

GM
- Drag Race Oil Pan
- Super Stock/Bracket cars
- 1985 and Older Small Block Chevy, Dart Little M and Merlin Motown with 2-Piece Rear Main Seal
- Deep Sump
- 8-quart capacity
- 8.25" Depth
- Aluminum
- Requires front cross-member modification
Recommended Pickups: - 710-24170 Fits Moroso Small Block Chevy Race Pump 710-22101 and Stock Style Pumps
- 710-24350 Fits Moroso Small Block Chevy HV Race Pump 710-22111 and Stock Style Hi-Volume Pumps
- 710-24320 Fits Moroso Big Block Chevy Race Pump 710-22150 and Stock Style Big Block Chevy pumps
- 710-24360 Fits Mellings Pump 689-M155HVFeatures:
- Aluminum, fully fabricated pan accepts 4.25" strokes with steel rods
- Double kick-out design ensures large stroke clearance, wide main cap clearance and maximum horsepower gain
- Billet end seals ensure consistent sealing surface to billet front covers and rear main caps
- For use with 168-tooth flywheel combinations
- Mini-Sump (1" deep) design works with Moroso cast and billet oil pump pickups
- Internal uni-directional windage screen and pan rail bolt access tubes on passenger-side
- Clears all System One style oil filters
- Use Tilton style starter with 168-tooth flywheel
- Required: Bullet Nose Oil Pan Stud Kit No. 710-38385Note:Oil pan capacities do not include oil filter capacity
Part TypeOil Pan
BrandMOROSO
Package Height9.0
Package Width15.8
Package Length23.8
Weight14.07 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number21237
Package Qty1
Package TypeEA
