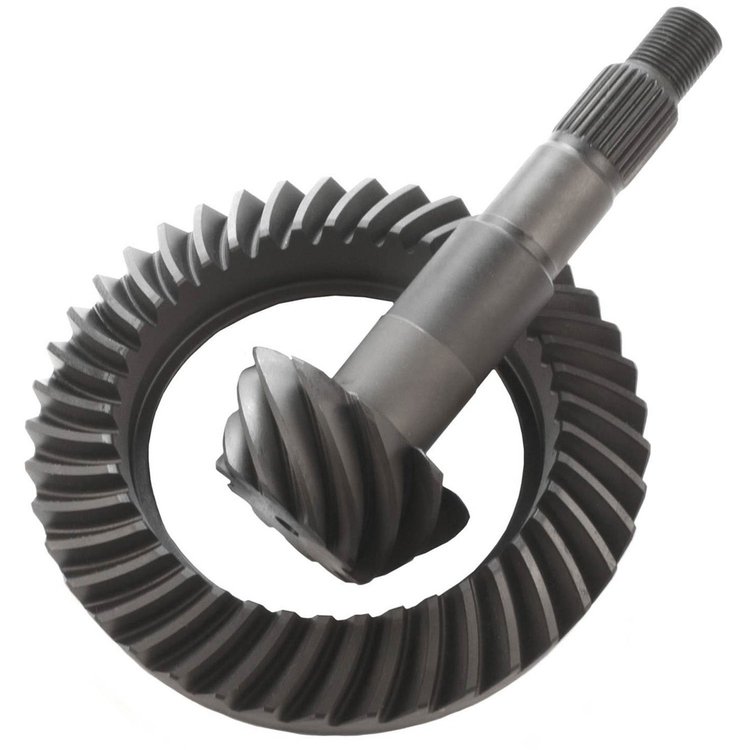

Ring & Pinion Gears Ratio: 4.10
InfoVehicle Info Needed
MOTIVE GEARPART NUMBER: 683-G875410

Ring & Pinion Gears Ratio: 4.10

$36299
1 left in stock
Lowest PriceLowest Price Guarantee
Best Value
Save
$12100
GM 10-Bolt Ring & Pinion 7.5" & 7.625" Diameter Ring Gear

555-60011

GM 10-Bolt Ring & Pinion 7.5" & 7.625" Diameter Ring Gear

$24199

GM 7.5"/7.6" 10-Bolt
    Ring & Pinion Gears
  • Ratio: 4.10
  • Teeth: 41-10
  • 3 Series

    Specifications:
  • Ring Gear Diameter: 7.50"
  • 10-3/8" x 18 Left Hand Threaded Bolts
  • Pinion Diameter: 1.438" 27-Splines
  • Cases: 3.08 & Numerically Lower; 3.3 & Numerically Higher
  • 8620 Material - Heat Treated
Part TypeRing and Pinion
BrandMOTIVE GEAR
Package Height5.3
Package Width11.2
Package Length15.2
Weight12.74 PG
Part CategoryPerformance Parts
Ring Gear RotationStandard
Ring Gear Tooth Quantity41
Differential Carrier Break3.23 and Higher
Cover Bolt Quantity10
Pinion Spline Count27
Ring Gear Material8620 Steel
Ring Gear Diameter7.5 in (190.5 mm)
Pinion Shaft Diameter1.438 in (36.5 mm)
Pinion Gear Tooth Quantity10
Axle TypeGM 7.5 in.
Ring Gear Bolt Quantity10
Part FitmentSemi Universal
Vendor Part NumberG875410
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
