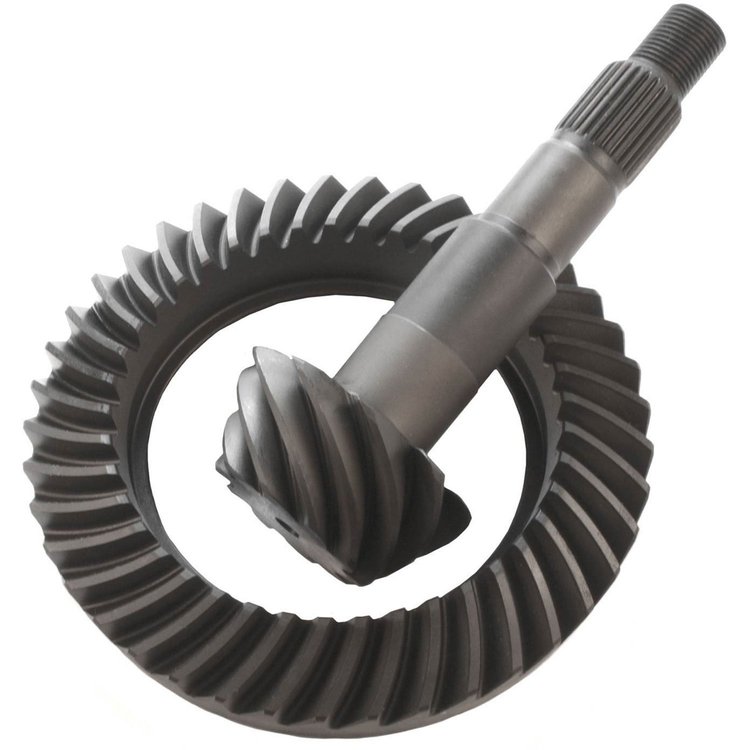

GM Ring & Pinion Gear Set Ratio: 4.10
InfoVehicle Info Needed
RICHMOND GEARPART NUMBER: 836-69-0322-1

GM Ring & Pinion Gear Set Ratio: 4.10

$47959
1 left in stock
Lowest PriceLowest Price Guarantee
Best Value
Save
$23760
GM 10-Bolt Ring & Pinion 7.5" & 7.625" Diameter Ring Gear

555-60011

GM 10-Bolt Ring & Pinion 7.5" & 7.625" Diameter Ring Gear

$24199

GM 7.5"/7.625"
  • 2 Series Fits 3.08 Lower Carrier, 3 Series Fits 3.23 Higher Carrier
  • Pinion Diameter: 1.438"
  • 27 Spline
      • GM Ring & Pinion Gear Set
    • Ratio: 4.10
    • Teeth: 41-10
    • Series: 3

    • Does not fit Monza
    • For 1977-81 applications, use Installation Kit #836-83-1016
    • For 1982-98 applications, use Installation Kit #836-83-1044
    • Will not work with Torsen differential.
    Part TypeRing and Pinion
    BrandRICHMOND GEAR
    Package Height5.3
    Package Width11.1
    Package Length15.1
    Weight12.09 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Pinion Gear Teeth10
    Ring Gear Tooth Quantity41
    Carrier Series3
    QuantitySold as a set
    Differential Carrier Break3.23 and Higher
    Cover Bolt Quantity10
    Pinion Spline Count27
    Ring Gear Material8620 Steel
    Ring Gear Diameter7.5 in (190.5 mm)
    Ring And Pinion Ratio4.10:1
    Pinion Shaft Diameter1.438 in (36.5 mm)
    Installation Kit IncludedNo
    Pinion Gear Tooth Quantity10
    Axle TypeGM 7.5 in.
    Ring Gear Bolts10
    Cover Bolts10
    Ring Gear Teeth41
    Ring Gear Bolt Quantity10
    Part FitmentSemi Universal
    Vendor Part Number69-0322-1
    Package Qty1
    Package TypeEA
