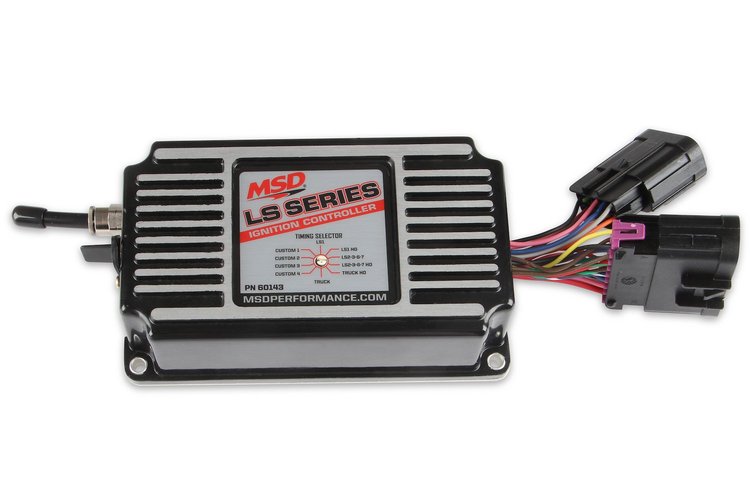

The MSD 60143 LS Ignition Controller is a powerful, flexible solution for both stock and high-performance LS engine builds. Compatible with 24x/1x and 58x/4x crank/cam configurations, it auto-detects the reluctor wheel pattern—no manual selection needed. It offers six pre-programmed timing tables for stock engines, three customizable 3-D tables, and one customizable timing plot, all selectable via a rotary dial, with tuning options available through MSDView software. A built-in 2.5 Bar MAP sensor supports both naturally aspirated and boosted setups by adjusting timing based on manifold pressure. The unit also features 8MB of onboard data logging for track analysis, high-speed data acquisition, programmable step and launch retard, RPM limiters, and advanced controls like idle timing, individual cylinder timing, and optional coolant temp input. Whether you're running a stock crate LS or a custom build, the 6014 delivers reliable ignition control and easy tuning to extract maximum performance.

MSD 60143 GM Gen III/IV LS Ignition Controller:

• Fits most LS engines
• No PC required for basic functionality
• Six preprogrammed timing tables for easy setup
• Rotary selector switch allows timing changes on the fly
• Nitrous and boost compatible
• High-speed data acquisition
• Fully sealed direct plug-in connectors
• Programmable step retard
• Launch and max rev limiters
• Optional coolant temperature sensor input
• Launch retard
• Idle timing control
• Individual cylinder timing
• Compatible with all MSD, Accel, and GM LS coils

Emissions Note:

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
