Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

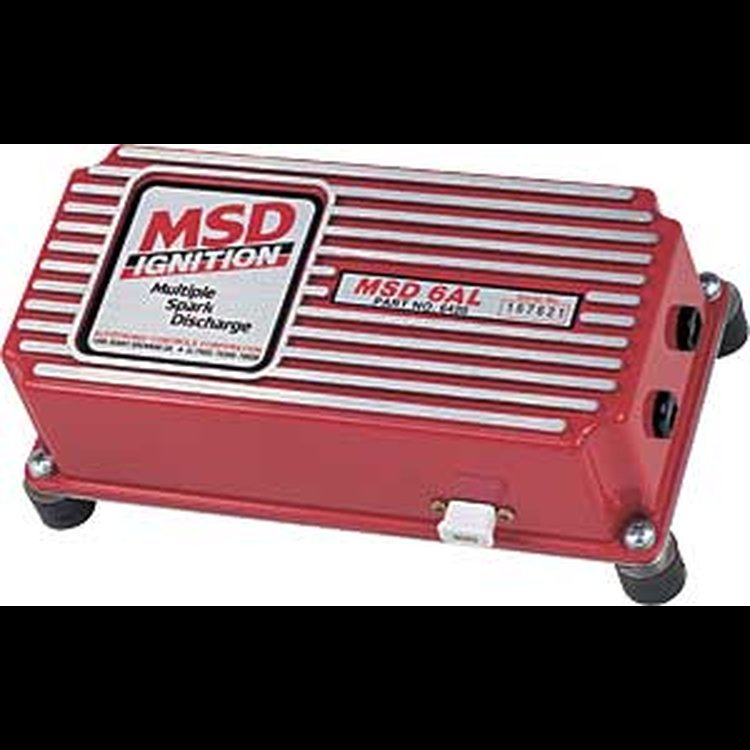

- 6AL Ignition Control Box
- **This Item is no longer available has been Replaced by the New Digital 6AL 121-6425
- CARB E.O Number: D-4
Features: - Same as 6A ignition box but with built-in Soft Touch rev control that allows you to set an RPM limit to protect an engine from over-rev damage due to driveline failure or missed shifts
- Adjustable in 100 RPM increments
- Rubber shock mounts and 3000, 6000, 7000, and 8000 RPM modules included
- Other MSD RPM Controls can connect to the 6AL (e.g. 3-Step Module Selector or RPM-Activated Switch)
- OBD-II approved and 50-state legal via EO #D-40-26Operating Specifications:
- Spark Energy: 105-115mJ (per spark)
- Primary Voltage: 460 to 480 volts
- Secondary Voltage: 45,000 volts (Tested with Blaster Coil)
- Spark Series Duration: 20° crankshaft rotation
- RPM Range: 15,000 RPM with 14.4 volts
- Voltage Required: 12 to 18 volts (negative ground)
- Current Draw: 1 amp per 1000 RPM
- Dimensions: 3 lbs.
- Weight: 8" L x 4" W x 2.25" H
- CARB E.O Number D-40-26
BrandMSD IGNITION
Package Height3.1
Package Width9.8
Package Length11.1
Weight3.94 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
