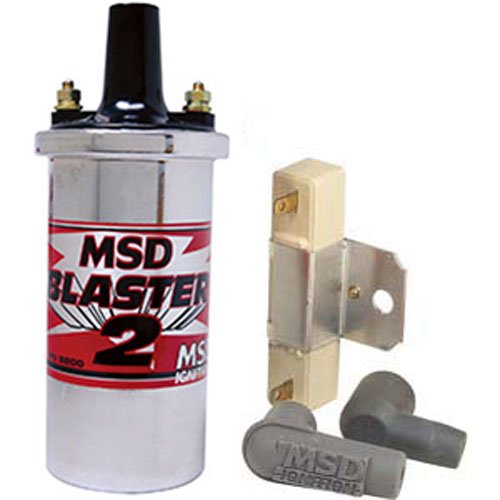

This Blaster 2 Coil is supplied with a 0.8 ohm ballast resistor and a terminal and boot to fit most applications. The ballast resistor must be used with stock Points Ignition and Mallory Unilite applications.

Coil Specs:

• Turns ratio: 100:1
• Primary resistance: .7 OHMs
• Secondary resistance: 4.5K OHMs
• Inductance: 8 mH
• Maximum voltage: 45,000 Volts (Tested with 6AL Ignition)
• Peak current: 140 mA
• Spark duration: 350 uS

Features:

• Improved output coil for electronic, Point, Blaster or MSD 5, 6, and 7 Series Ignitions (ballast resistor required for points)
• Alkyd tower with high dielectric properties is less prone to carbon tracking
• 100:1 turns ratio and lower primary resistance produce high voltage output
• Metal canister is filled with a premium grade oil for cooling
• Supplied with two spark plug wire boots, terminals and a ballast resistor (required if used with stock points ignition)
• 50 State Legal
• CARB Legal for OBDII 2003 or Older E.O. D-40-37
