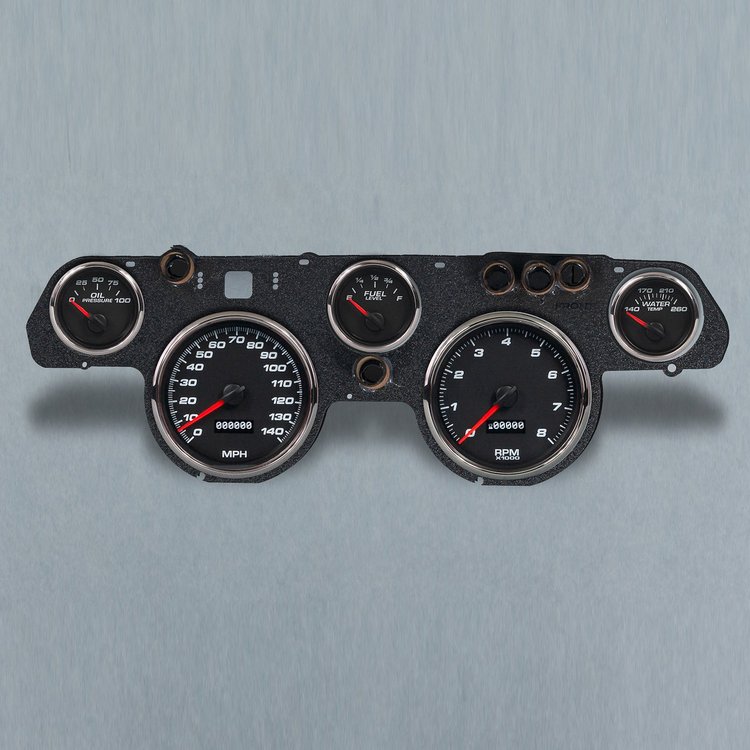

New Vintage USA 01705-01 Features:

1967-1968 Mustang gauges and aftermarket kits from New Vintage USA offer the widest selection on the market. With several styles and colors you are sure to find something that suits your build. Choose from the factory-inspired 67 series, or go all-in with the CFR Series. Kits are available in DIY (Do It Yourself), Assembled and wired, LED backlit or old-school incandescent perimeter lit. DIY (Do It Yourself) kits are designed for at home installation of gauges in your existing (or new) bezel. Bolt it together, wire it up and off you go... Includes electronic speedometer, tachometer, oil pressure, water temperature, factory match fuel gauge (73-10 ohm, no sender included use existing sender), temperature and pressure senders with bushing kit, ABS mounting panel, polycarbonate top support, and instructions. Air core kits feature short sweep gauges, and incandescent lighting.

Performance Series gauges offer great OEM style performance graphics look modern and racy without being over the top, a perfect match for Pro-touring builds or any vehicle that wants an updated look. Bold design with modern pointer, perimeter incandescent lighting, and new ranges to match today's power plants.

NVU's Phoenix technology behind the scenes drives the gauges with easy to read menu functions, fully programmable inputs for speedo and tach make this the most versatile stand-alone gauge kit on the market! Mo additional filters, adapters or driver modules or boxes, NVU instruments run as-is. New temperature and pressure ranges for today's builds.

Speedometer operates from any speed signal OE, PCM (computer), aftermarket or even our GPS antenna.



Kit includes:

67-68 Mustang mounting bracket kit

Speedometer 4-3/8" 140 MPH with Phoenix features and one additional analog input

Tachometer 4-3/8" 8,000 RPM with Phoenix features and 2 additional inputs

2-1/16" Fuel gauge 73-10 Ω (Ford factory match)

2-1/16" Oil pressure 0-100 PSI

2-1/16" Water temp 140-280 F

Back-clamps

Incandescent bulbs

2 ea AMP connectors

Water temperature sender Hi Match

Oil pressure sender 240-33Ω 1/8-27 NPT

Bushing kit 1/8-27 NPT to 1/4", 3/8", 1/2"

4 ea indicator bulb assemblies

1 ea polycarbonate top adapter

*SPEED SENDER MAY BE REQUIRED CHECK YOUR APPLICATION

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: No
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: No
• Indicator Lamps: No
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Titanium
• Gauge Lens: Flat Glass
