New Vintage USA 02257-03 Features:

Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Black bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.

performance II 3-1 gauges use NVU's exclusive Phoenix technology featuring fully programmable inputs, displays and high-tech OLED screens. Programmable speedometer is set up in minutes and can operate via any OE or aftermarket speed sender, PCM (computer) or GPS antenna. Programmable fuel gauge has virtually every setting for most fuel senders, no more dropping the tank. Tachometer has interface for easy set up to virtually and ignition system. Deadfronted (hidden) indicators with up to 6 lights come standard along with LED backlighting and lit pointers. Installation is easy with our new AMP plug connections, only 1 plug per gauge for all functions.

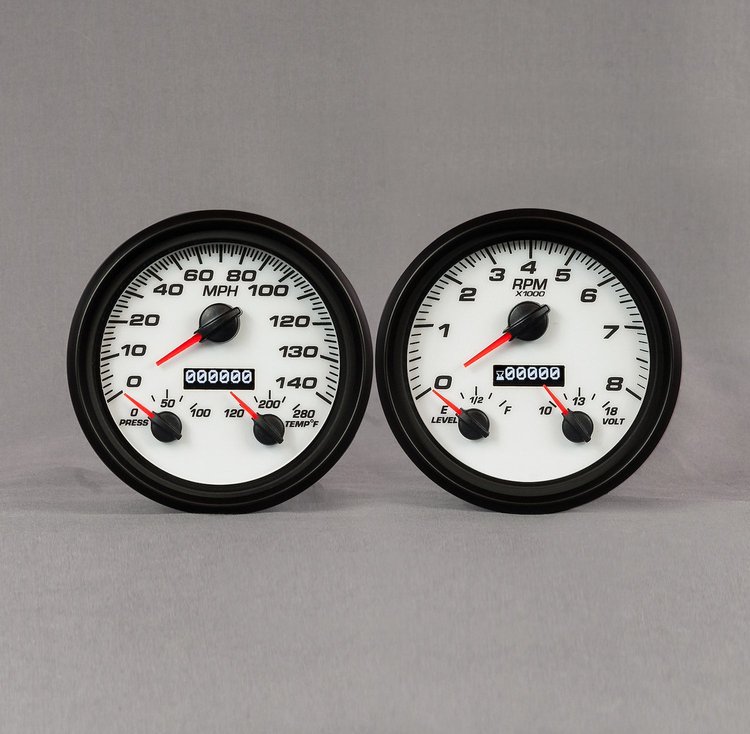

Kits include:

4-3/8" Speedometer (140 MPH) with water temp and oil pressure

4-3/8" Tachometer (8,000 RPM) with programmable fuel gauge and voltmeter

Backclamps

AMP plug connectors with color coded wiring harness

Oil pressure sender (240-33 ohm)

Temperature sender (NVU hi match)

Hardware kit

Bushing kit

Detailed instructions

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: No
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: No
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: White
• Gauge Number Color: Black
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
