New Vintage USA 02670-03 Features:

Gauge kits for Gen II Camaro fit all dashes from 70-78 fitting in the factory location. NVU’s exclusive CNC cut ABS bracket features full adjustability for to fit those older dashes that may not be so straight anymore! Gauges mount in any location offering you flexibility in where and how you want to monitor the vehicle’s vitals. Choose from several of NVU’s BOLD styles to make that dash stand out in a way that fits your ride’s look. Instruments can operate on virtually any engine configuration from old-school small blocks to modern LS and LT PCMs all without any boxes, module or drivers!

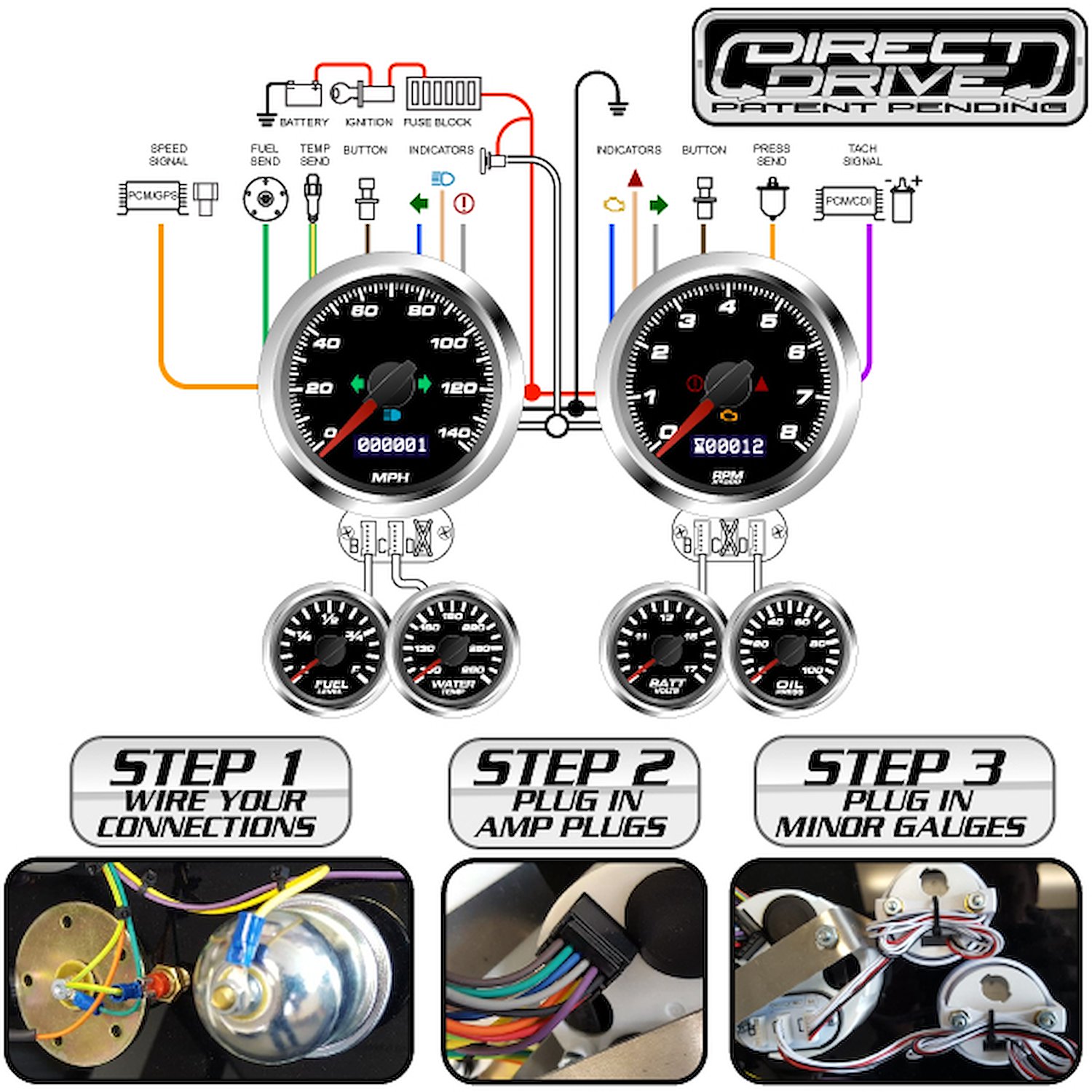

Kits include mounting bracket, gauges, temperature sender, pressure sender, bushing kit and detailed instructions re-use your original mounting hardware (screws) for a matching, factory installed look. Must be wired as any aftermarket kit (not plug and play).
Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Stainless or bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.

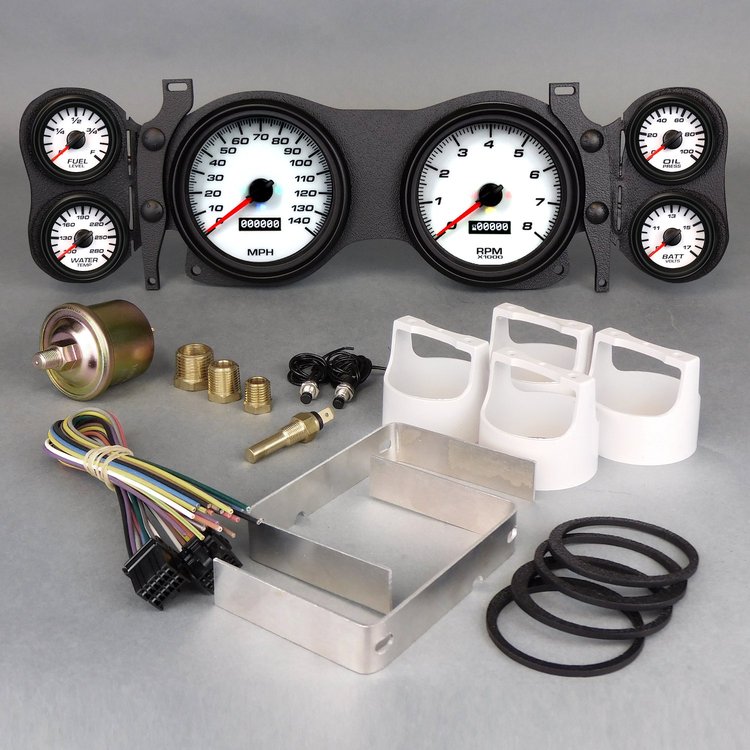

Kit includes:
Gen II (70-78) Camaro mounting bracket kit
Speedometer 4-3/8" 140 MPH with Phoenix features and one additional analog input
Tachometer 4-3/8" 8,000 RPM with Phoenix features and 2 additional inputs
2-1/16" Fuel gauge 0-90 Ω (GM factory match)
2-1/16" Voltmeter 10-16V
2-1/16" Oil pressure 0-100 PSI
2-1/16" Water temp 140-280 F
Back-clamps
2 ea AMP connectors
Water temperature sender Hi Match
Oil pressure sender 240-33Ω 1/8-27 NPT
Bushing kit 1/8-27 NPT to 1/4", 3/8", 1/2"
*SPEED SENDER MAY BE REQUIRED CHECK YOUR APPLICATION

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: No
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: No
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: Mint Green
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
