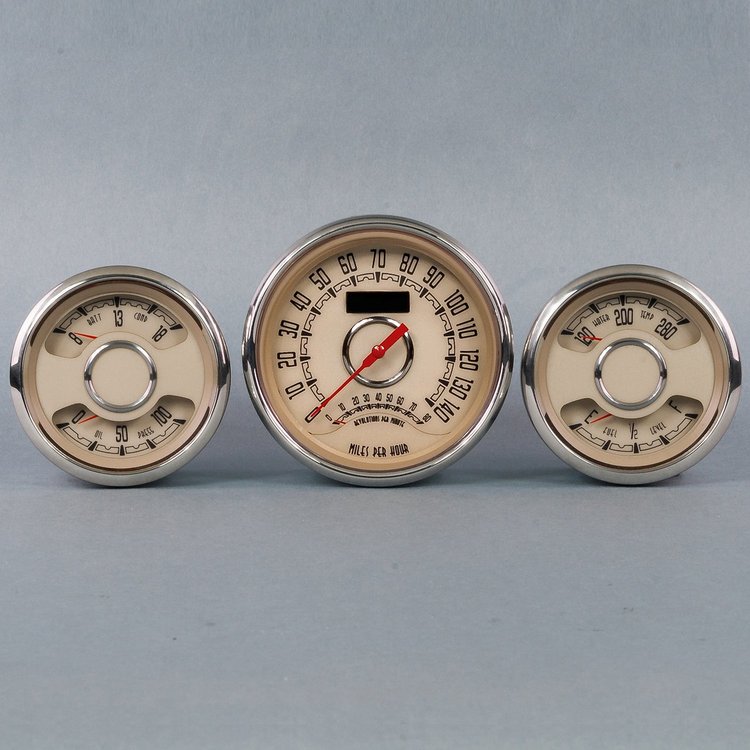

New Vintage USA 37344-02 Features:

The Woodward Series, the original period styled instruments. Our period look instruments have the great styling features you have come to expect from New Vintage. The exclusive inner accent ring is on every set, others simply print silver on the dial, we took the time to add a real plated part to match our stainless bezel. The bold, wraparound deco styled graphics stand out without looking out of place. A domed glass lens caps off the look in a luxurious manner. Our programmable speedometers are easy to program, hit the button, drive a mile, hit it again, you’re done! Works with any speedometer sender aftermarket or stock. With or without our exclusive cover bezel, these sets have the right look, performance you expect and the right price, all with our 5-year warranty. Woodward Series gauges are a perfect fit for your vintage, classic or hot rod. New Vintage gauges are styled with the look of the 30s and 40s for an original inspired hot rod style.

The Woodward Series 3 gauge kits are available in our popular 4-3/8" mounting hole for the Speedometer size and 3 3/8" mounting holes with polished stainless steel bezels and domed lenses. Installation is a snap with our exclusive color-coded AMP connector harnesses and easy to adjust back-clamps. NVU's Phoenix technology behind the scenes drives the gauges with easy to read menu functions, fully programmable inputs for speedo, tach and fuel make this the most versatile stand-alone gauge kit on the market! No additional filters, adapters or driver modules or boxes, NVU instruments run as-is. New temperature and pressure ranges for today's builds along with programmable, electronic dampened fuel gauge for smooth, easy to see reading without any tank slosh issues. Speedometer operates from any speed signal OE, PCM (computer), aftermarket or even our GPS antenna. Tachometer runs from any pulsed input ignition system (coil, CDI box, PCM (computer) for a wide range of applications.



This NVU kit includes:

One 4-3/8" mounting hole Speedometer-tachometer gauge, programmable with OLED display 140 MPH, 0-8,000 RPM 1,4,6,8,10,12 cylinder 4 stroke applications

Two 3-3/8" mounting hole gauges with Fuel (programmable inputs see manual for details) temperature, pressure and vehicle voltage

AMP Plug wiring harnesses with color-coded wiring

Back clamps

Oil pressure sender 1/8-27 thread 240-33 Ω

Temperature sender (high match 500-30 Ω)

Bushing kit with 1/4, 3/8 and 1/2" thread

Programming button

Detailed instructions

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: Yes
• Bezel Included: Yes
• Bracket Included: No
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: No
• Gauge Style: Analog
• Gauge Dial Color: Beige
• Gauge Number Color: Black
• Gauge Pointer Color: Red
• Bezel Finish: Stainless Steel
• Gauge Lens: Domed Glass
