New Vintage USA 40257-03 Features:

Inspired by military sets, the NVU 1940 series has the feel of the very popular aircraft and military instruments of the 30s and 40s, but with modern technology. Why buy salvage yard gauges that don't match, or work for that matter? NVU started with the military graphics and upgraded to domed lenses and stainless steel bezels for an upscale, 5-Star General appearance. The graphics are duplicated down to the smallest detail, and a white-tipped pointer adds to the effect. The new Vintage 1940 Series gauges are made in the USA and feature our 5-year warranty.

1940 Series 3-1 gauges use NVU's exclusive Phoenix technology featuring fully programmable inputs, displays and high-tech OLED screens. Programmable speedometer is set up in minutes and can operate via any OE or aftermarket speed sender, PCM (computer) or GPS antenna. Programmable fuel gauge has virtually every setting for most fuel senders, no more dropping the tank. Tachometer has interface for easy set up to virtually and ignition system. Deadfronted (hidden) indicators with up to 6 lights come standard along with perimeter incandescent lighting. Installation is easy with our new AMP plug connections, only 1 plug per gauge for all functions.

Kits include:

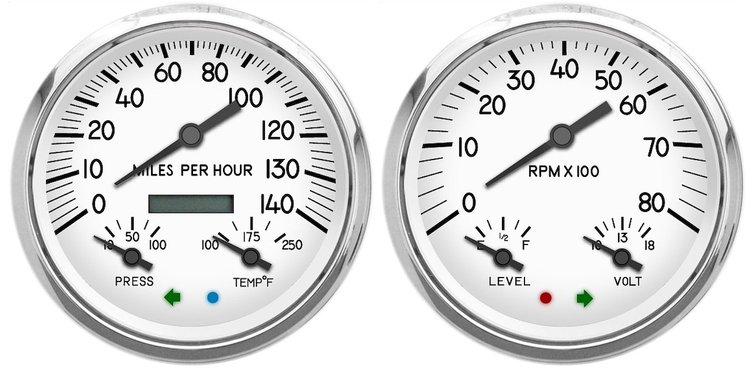

4-3/8" Speedometer (140 mph) with water temp and oil pressure

4-3/8" Tachometer (8,000 RPM) with programmable fuel gauge and voltmeter

Backclamps

AMP plug connectors with color coded wiring harness

Oil pressure sender (240-33 ohm)

Temperature sender (NVU hi match)

Hardware kit

Bushing kit

Detailed instructions

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: No
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: No
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: White
• Gauge Number Color: Black
• Gauge Pointer Color: Black
• Bezel Finish: Stainless
• Gauge Lens: Domed Glass
