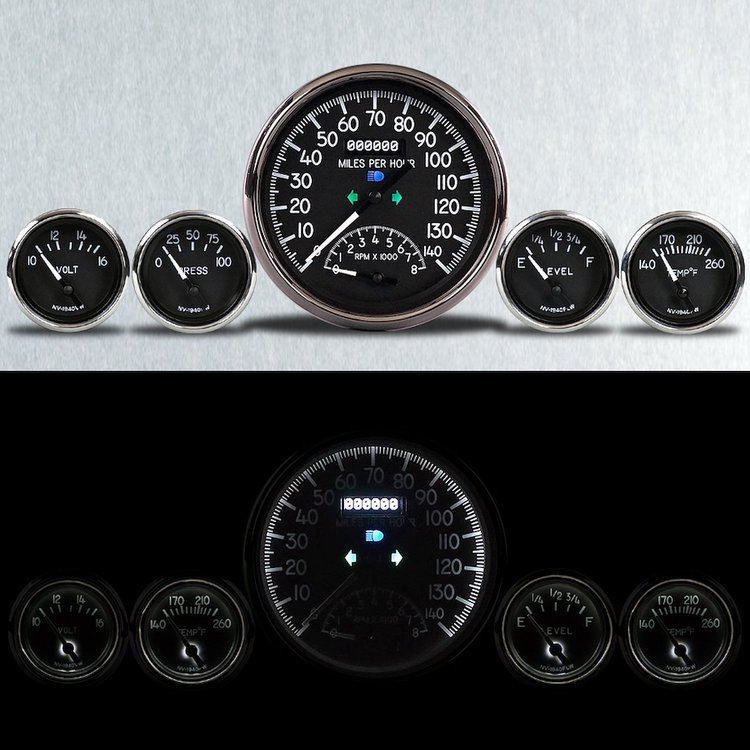

New Vintage USA 40505-01 Features:

NVU kits for 72-82 Dodge truck 5-hole dashes are a great way to get that dash up to snuff and monitor your essential functions. Gauges fit in the stock dash holes with minor trimming, please check out our detailed instructions for details. With a wide range of styles and great Phoenix features in the speedometer your dash will look and function great! Electronic speedometers operate from most speed senders aftermarket or OE or GPS senders.

Inspired by military sets, we have duplicated the feel of the very popular aircraft and military gauges of the 30s and 40s, but with modern technology. Why buy salvage yard gauges that don’t match, or work for that matter? We started with the military graphics and upgraded to domed lenses and stainless steel bezels for an upscale, “5-Star General” appearance. The graphics are duplicated down to the smallest detail, and a white-tipped pointer adds to the effect. The mechanical speedometer features a trip odometer with reset switch. The patented bi-torque 2-1/16” gauges offer the modern technology behind the scenes to provide accurate readings. The New Vintage 1940 Series gauges are made in the USA and feature our 5-year warranty.

Kit includes:

4-3/8 Speedo/Tach combination gauge

2-1/16" Fuel gauge 73-10 Ω factory match

2-1/16" Water temperature gauge

2-1/16" Oil pressure gauge

2-1/16" Voltmeter

Gauge mounting back clamps and hardware

Programming button

2 ea Color-coded AMP harnesses

Bushing kit 1/2", 3/8", 1/4"

Oil pressure sender 240-33Ω 1/8-27 NPT thread

Temperature sender NVU high-match 1/8-27 NPT thread

** Speed sender may be required, not included, check your application

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: No
• Bracket Included: No
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: White
• Bezel Finish: Stainless
• Gauge Lens: Domed
