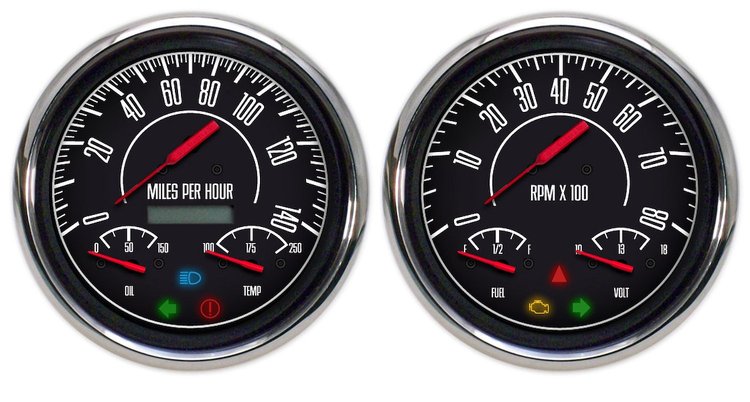

New Vintage USA 67257-01 Features:

NVU 1967 series gauges are the first instruments on the market with a true mid-60s style. Others have tried to duplicate, but this is the real deal! Wraparound numbers, canted tic marks, all with old-school perimeter lighting for a real 60s look. Stainless steel bezels and domed lenses add a touch of class. Perfect for your musclecar, gasser, dunebuggy, 60s truck; anything that demands that unique American muscle look.

67 Series gauges use NVU's exclusive Phoenix technology featuring fully programmable inputs, displays and high-tech OLED screens. Programmable speedometer is set up in minutes and can operate via any OE or aftermarket speed sender, PCM (computer) or GPS antenna. Programmable fuel gauge has virtually every setting for most fuel senders, no more dropping the tank. Tachometer has interface for easy set up to virtually and ignition system. Deadfronted (hidden) indicators with up to 6 lights come standard along with Perimiter lighting. Installation is easy with our new AMP plug connections, only 1 plug per gauge for all functions.

Kits include:

4-3/8" Speedometer (140 MPH) with water temp and oil pressure

4-3/8" Tachometer (8,000 RPM) with programmable fuel gauge and voltmeter

Backclamps

AMP plug connectors with color coded wiring harness

Oil pressure sender (240-33 ohm)

Temperature sender (NVU hi match)

Hardware kit

Bushing kit

Detailed instructions

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: No
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: No
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Stainless
• Gauge Lens: Domed Glass
