New Vintage USA 67649-01 Features:

NVU gauge kits for 67-72 F100 create a whole new, custom look to your dash. The gauge mounting panel fits the standard F100 dash (some modifications to stock bezel required, see instructions) for a perfect fit every time. Paint your original bezel to match or contrast your dash and insert the NVU CNC laser-cut panel featuring turn signals, hi-beam and warning lamps to finish it up. Kits include gauges, bracket, mounting brackets, dash insert and detailed instructions. 6 gauge kits also feature factory match 73-10 ohm fuel gauge to match existing tanks.

AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether it's race, off road or daily driver. LED back lit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and spin-on back clamp with vibration dampening o-ring, waterproof up to 35 PSI from the front,. The AVIATOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with stainless and flat glass for easy viewing in open-cockpit vehicles. Great choice for a hot rod with a modern twist Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night 6 gauge kit components: 4-3/8" speedometer 240 KPH, 4-3/8" tachometer 0-8,000 RPM ,Fuel gauge with user select-able ranges: 0-90 (GM), 73-10 (Ford), 240-33 (universal), 16-158 (Ford late) ,Water temperature gauge ,Oil pressure gauge ,Voltmeter ,Bushing kit ,Programming button ,Spin-on back-clamps ,Wiring harnesses ,Temperature sender ,Pressure sender ,*Fuel and speed senders may be required, check your application

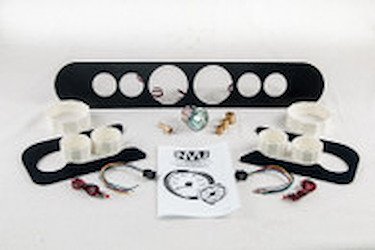

Kit includes:

Speedometer, 3-3/8" Programmable electronic 140 MPH

Tachometer 3-3/8"

Filler gauge

Fuel gauge 2-1/16", 73-10 ohm factory match

Water temperature gauge 2-1/16:

Oil pressure gauge 2-1/16"

Voltmeter 2-1/16"

Oil pressure and water temperature senders

Bushing kit

Mounting bracket

Instruction booklet

Mounting hardware for gauges

* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock transmission.

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: No
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Stainless
• Gauge Lens: Flat Glass
