New Vintage USA 69670-01 Features:

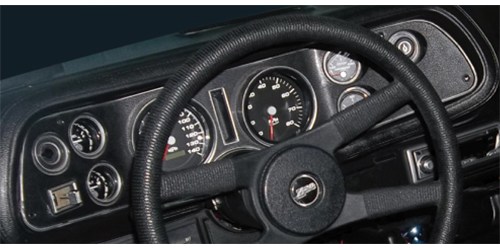

Gauge kits for Gen II Camaro fit all dashes from 70-78 fitting in the factory location. NVU’s exclusive CNC cut ABS bracket features full adjustability for to fit those older dashes that may not be so straight anymore! Gauges mount in any location offering you flexibility in where and how you want to monitor the vehicle’s vitals. Choose from several of NVU’s BOLD styles to make that dash stand out in a way that fits your ride’s look. Instruments can operate on virtually any engine configuration from old-school small blocks to modern LS and LT PCMs all without any boxes, module or drivers!
All feature NVU's exclusive Phoenix Direct Drive! Easy Driver gauge/minor gauge installation with features found in modern OE vehicles.
The first true 60 themed gauge set on the market with a period look and modern stepper motor technology.4-3/8", 3-7/16” and 2-1/16” gauge fit aftermarket dash panels for a professional installation.
Get the best of both worlds-classic looks with modern technology.
NVU 1969 SERIES are the original backlit muscle car-themed instruments. Bold 60s mint green graphics on a black background with backlit red pointers topped with real glass lenses and hand polished stainless steel bezels. Great for any restoration, resto-mod or build where modern technology and vintage appearance is a must. Perfect for any 60s, 70s, musclecar, gasser, pro-touring dash gauges.

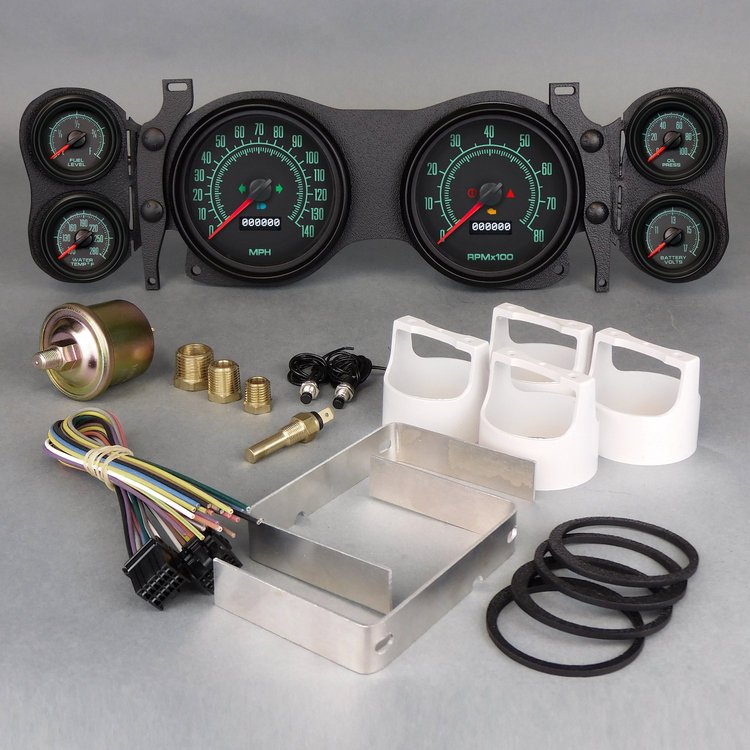

Kit includes:
Gen II (70-78) Camaro mounting bracket kit
Speedometer 4-3/8" 140 MPH with Phoenix features and one additional analog input
Tachometer 4-3/8" 8,000 RPM with Phoenix features and 2 additional inputs
2-1/16" Fuel gauge 0-90 Ω (GM factory match)
2-1/16" Voltmeter 10-16V
2-1/16" Oil pressure 0-100 PSI
2-1/16" Water temp 140-280 F
Back-clamps
2 ea AMP connectors
Water temperature sender Hi Match
Oil pressure sender 240-33Ω 1/8-27 NPT
Bushing kit 1/8-27 NPT to 1/4", 3/8", 1/2"
*SPEED SENDER MAY BE REQUIRED CHECK YOUR APPLICATION

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: No
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: No
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
