New Vintage USA 69691-02 Features:

We didn't forget about the Pontiac guys. Our laser-cut mounting bracket allows the installation of any of our 4-3/8" gauge kits in the stock housing.

The first true 60 themed gauge set on the market with a period look and modern stepper motor technology.4-3/8", 3-3/8” and 2-1/16” gauge fit aftermarket dash panels for a professional installation.
Get the best of both worlds-classic looks with modern technology.

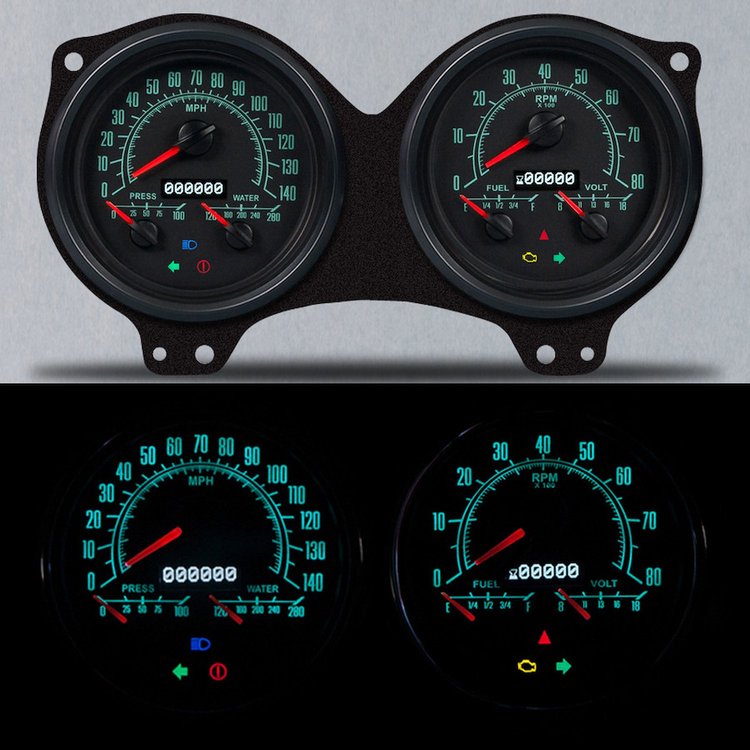

NVU 1969 SERIES are the original backlit muscle car-themed instruments. Bold 60s mint green graphics on a black background with backlit red pointers topped with real glass lenses and hand polished stainless steel bezels. Great for any restoration, resto-mod or build where modern technology and vintage appearance is a must. Perfect for any 60s, 70s, musclecar, gasser, pro-touring dash gauges.

Need more? Add-on a oil temp, boost, air/fuel gauge below for a complete package.
* may require speedometer sender-see accessory section

1969 Series 3-1 gauges use NVU's exclusive Phoenix technology featuring fully programmable inputs, displays and high-tech OLED screens. Programmable speedometer is set up in minutes and can operate via any OE or aftermarket speed sender, PCM (computer) or GPS antenna. Programmable fuel gauge has virtually every setting for most fuel senders, no more dropping the tank. Tachometer has interface for easy set up to virtually and ignition system. Deadfronted (hidden) indicators with up to 6 lights come standard along with LED backlighting and lit pointers. Installation is easy with our new AMP plug connections, only 1 plug per gauge for all functions.

Kits include:

69 Firebird mounting bracket

4-3/8" Speedometer (140 MPH) with water temp and oil pressure

4-3/8" Tachometer (8,000 RPM) with programmable fuel gauge and voltmeter

Backclamps

AMP plug connectors with color coded wiring harness

Oil pressure sender (240-33 ohm)

Temperature sender (NVU hi match)

Hardware kit

Bushing kit

Detailed instructions

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: GREEN
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
