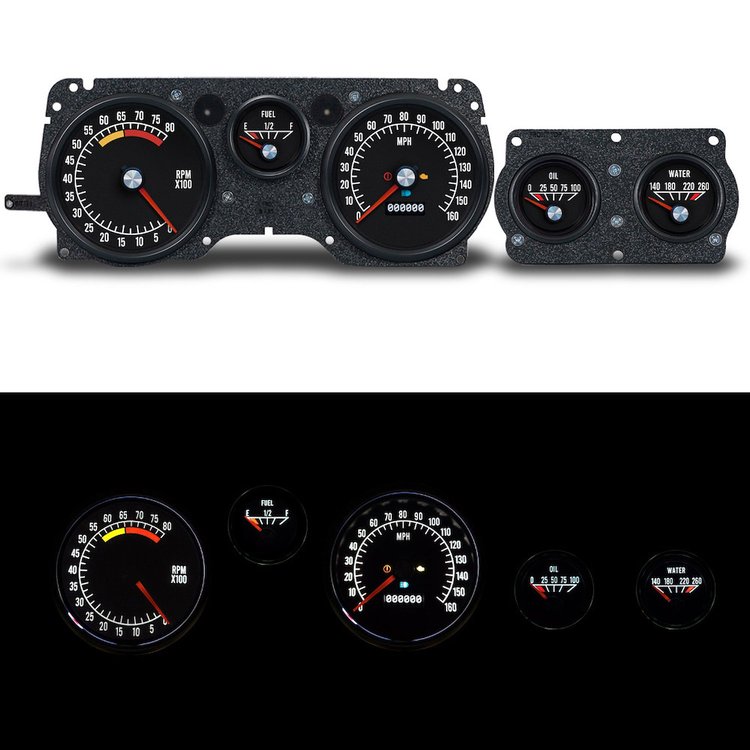

New Vintage USA 71081-01 Features:

NVU kits for 70-81 Pontiac Firebird update the look of your dash to match the theme of your ride Plus offer updated, modern internals and functions you expect in today's builds. All kits include NVU's exclusive laminate mounting system that installs in the factory mounting holes without cutting up your dash plate. Functional turn signals can be displayed in the factory panel with the included LEDs. We even added a separate LED to light up your wiper switch, just like original! Kits include Speedo, Tach, fuel (factory match 0-90 Ω) , water temp, oil pressure and internally displayed voltmeter (on OLED Screen). Bushings, brackets, temperature sender, pressure sender, AMP harnesses and programming buttons also included in the kit.

Exclusively from NVU!

The Factory styled NVU Retro series – a groundbreaking leap in dash aesthetics. Immerse yourself in the captivating blend of retro inspiration and modern engineering, meticulously crafted to infuse your ride with an irresistible allure echoing the era that left an indelible mark. Factory looks with modern functionality that you desire!

Unveil Iconic Essence

The Retro series breathes life into the cherished design ethos of the 70s and 80s, capturing the essence that defined generations. Drawing from classics, NVU reimagines these iconic styles through a contemporary lens, presenting an artistic homage to the past while embracing future aspirations.

Elevate Aesthetics with Bold Graphics

Bold graphics revive the spirit of the past in a fresh and captivating manner. Meticulously designed, each detail blends nostalgia with contemporary flair, transforming your dashboard into a work of art that's more than an instrument.

Included in the kit:

70-81 Firebird mounting bracket

Built-in indicators (Turn signal, hi beam, warning lights)

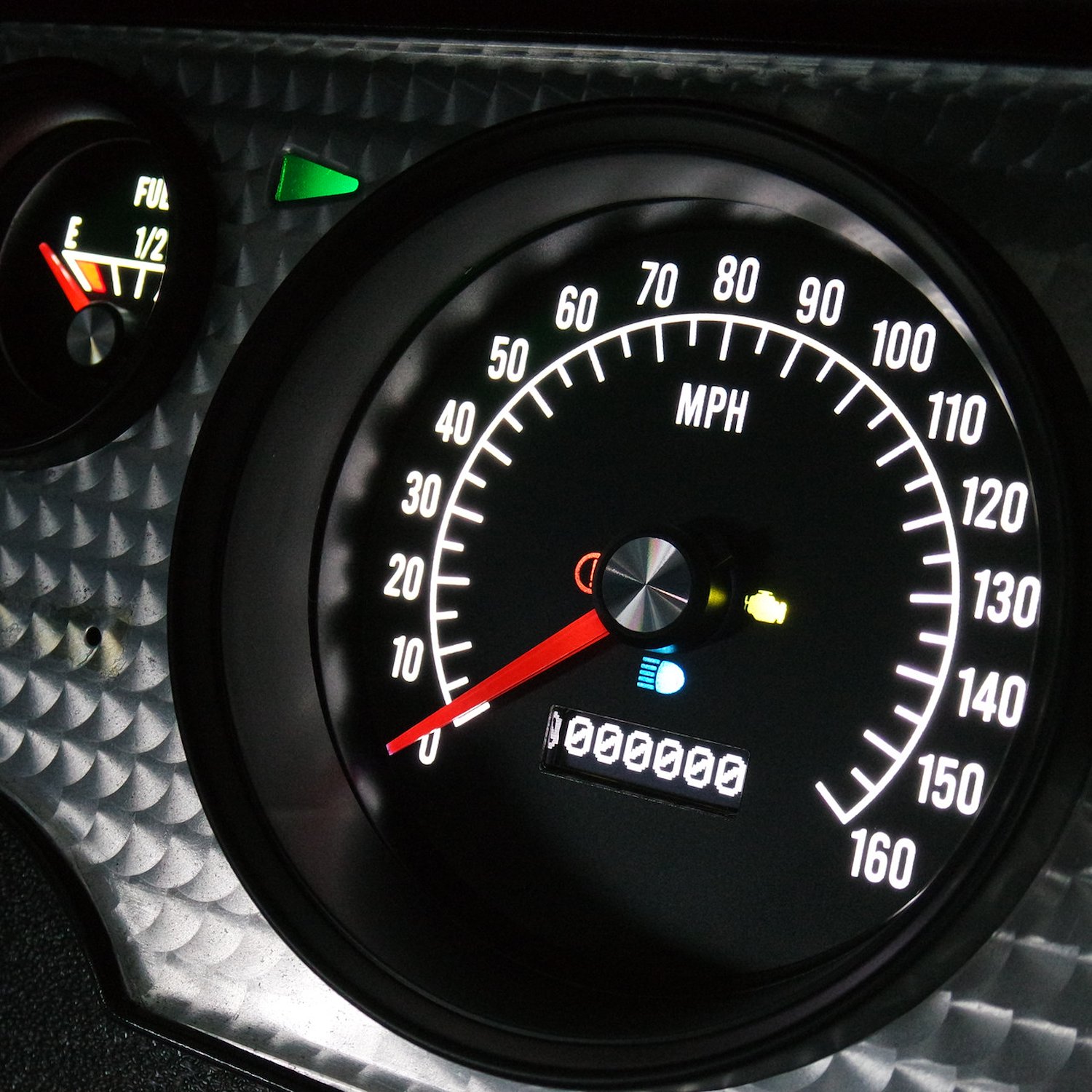

4-3/8" Speedometer 140 MPH programmable with 1 auxiliary input

4-3/8" Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)

Temperature gauge 140-280 F

Oil pressure gauge 0-100 PSI

2 ea AMP connector harnesses

1 ea Programming buttons

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

70-81 5-hole Direct Fit bracket

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: No
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: No
• Bracket Included: No
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
