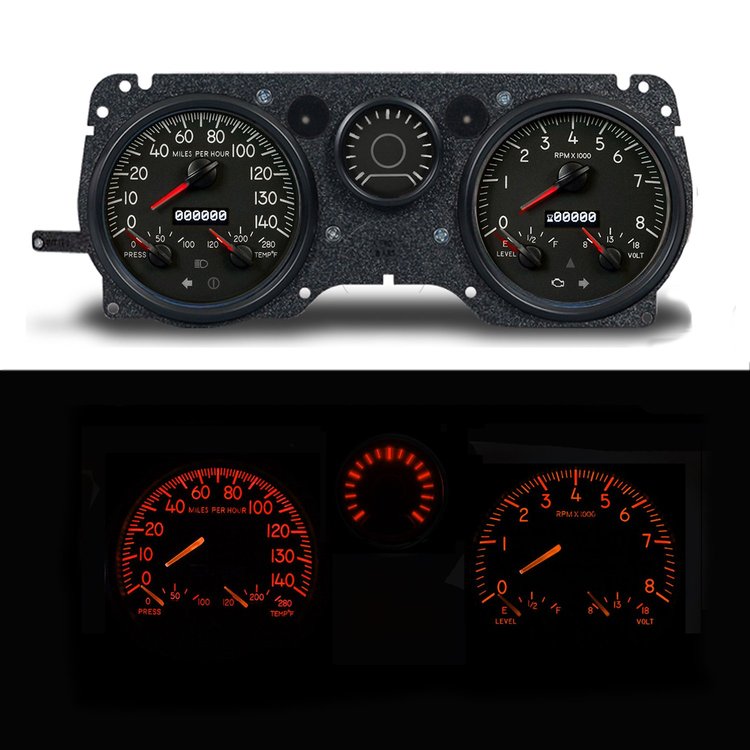

New Vintage USA 71116-08 Features:

NVU 3 Gauge kits for 70-81 Pontiac Firebird update the look of your dash to match the theme of your ride Plus offer updated, modern internals and functions you expect in today's builds. All kits include NVU's exclusive laminate mounting system that installs in the factory mounting holes without cutting up your dash plate. Functional turn signals can be displayed in the factory panel with the included LEDs. We even added a separate LED to light up your wiper switch, just like original! Kits include Speedo, Tach, fuel (factory match 0-90 Ω) , water temp, oil pressure and internally displayed voltmeter (on OLED Screen). Bushings, brackets, temperature sender, pressure sender, AMP harnesses and programming buttons also included in the kit.

AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether it’s race, off road or daily driver. LED backlit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and spin-on back clamp with vibration dampening o-ring, waterproof up to 35 PSI from the front,. The AVAITOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles.

More on our phoenix platform can be found HERE>

Included in the kit:

70-81 Firebird mounting bracket

Built-in indicators (Turn signal, hi beam, warning lights)

4-3/8" Speedometer 3-1 140 MPH programmable with 1 auxiliary input

4-3/8" Tachometer 3-1 8,000 RPM with TWO auxiliary inputs

2-1/16" Filler gauge

2 ea AMP connector harnesses

2 ea Programming buttons

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: Yes
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: No
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style:
• Gauge Dial Color: Black
• Gauge Number Color: Red
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
