New Vintage USA 71326-01 Features:

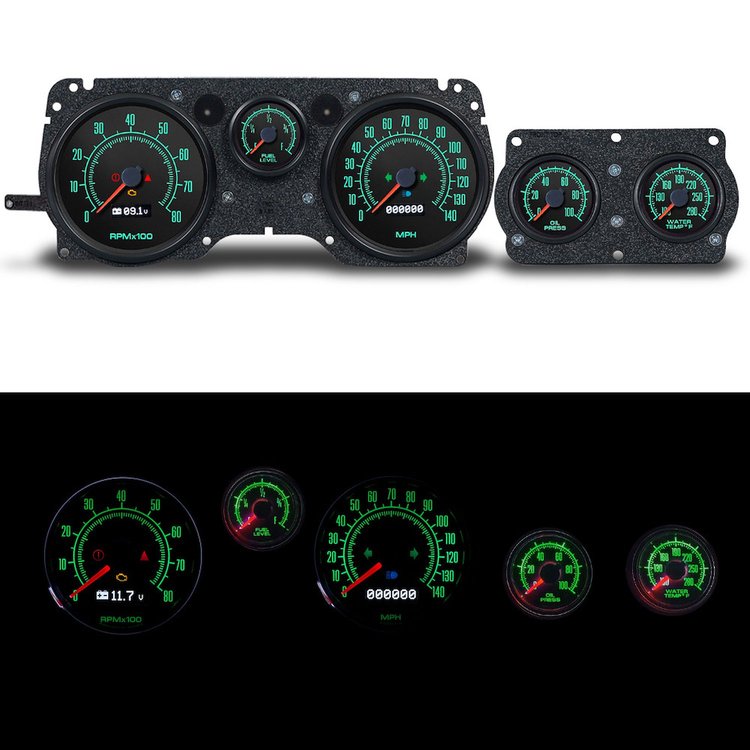

NVU kits for 70-81 Pontiac Firebird update the look of your dash to match the theme of your ride Plus offer updated, modern internals and functions you expect in today's builds. All kits include NVU's exclusive laminate mounting system that installs in the factory mounting holes without cutting up your dash plate. Functional turn signals can be displayed in the factory panel with the included LEDs. We even added a separate LED to light up your wiper switch, just like original! Kits include Speedo, Tach, fuel (factory match 0-90 Ω) , water temp, oil pressure and internally displayed voltmeter (on OLED Screen). Bushings, brackets, temperature sender, pressure sender, AMP harnesses and programming buttons also included in the kit.
NVU 1969 SERIES are the original backlit muscle car-themed instruments. Bold 60s mint green graphics on a black background with backlit red pointers topped with real glass lenses and hand polished stainless steel bezels. Great for any restoration, resto-mod or build where modern technology and vintage appearance is a must. Perfect for any 60s, 70s, musclecar, gasser, pro-touring dash gauges. Don't be fooled by initators- the 69 series this the Original backlit 60s themed set.

Included in the kit:

70-81 Firebird mounting bracket

Built-in indicators (Turn signal, hi beam, warning lights)

4-3/8" Speedometer 140 MPH programmable with 1 auxiliary input

4-3/8" Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)

Temperature gauge 140-280 F

Oil pressure gauge 0-100 PSI

Voltmeter 9-17V

2 ea AMP connector harnesses

2 ea Programming buttons

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
