New Vintage USA 71426-03 Features:

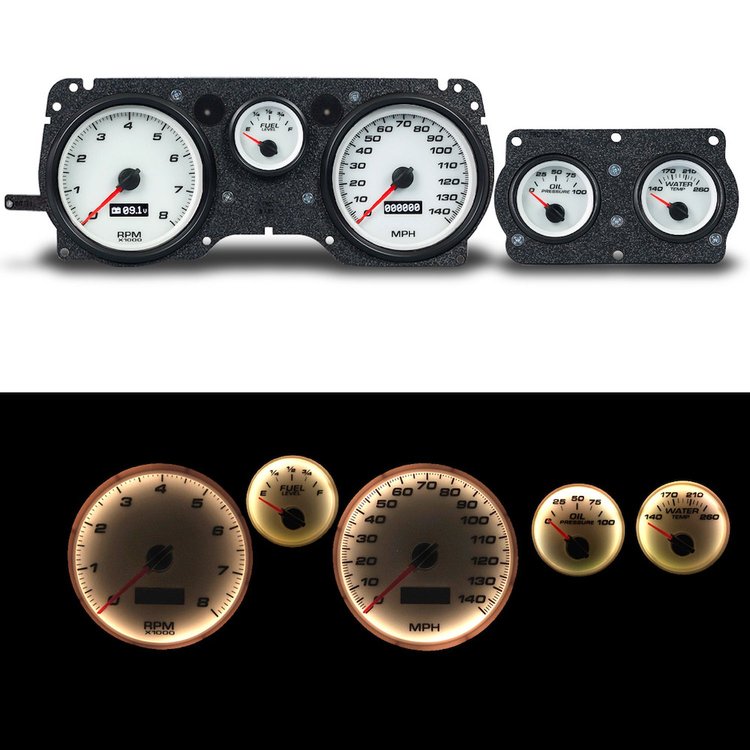

NVU kits for 70-81 Pontiac Firebird update the look of your dash to match the theme of your ride Plus offer updated, modern internals and functions you expect in today's builds. All kits include NVU's exclusive laminate mounting system that installs in the factory mounting holes without cutting up your dash plate. Functional turn signals can be displayed in the factory panel with the included LEDs. We even added a separate LED to light up your wiper switch, just like original! Kits include Speedo, Tach, fuel (factory match 0-90 Ω) , water temp, oil pressure and internally displayed voltmeter (on OLED Screen). Bushings, brackets, temperature sender, pressure sender, AMP harnesses and programming buttons also included in the kit.

Performance Series instruments Update the look of your dash with a race-inspired performance look without the "in your face" look of a racing gauge. Clean, bold graphics, flat glass lenses, incandescent perimeter lighting and modern pointers bring a performance appearance to the dash with some class. A great look for updating without going overboard in restomods, protouring or any other build that wants that upgraded look. Performance series speedometers and tachometers Feature all of NVU's Phoenix platform technology with OLED screens, performance timers, shift alert and multiple additional inputs. Minor gauges feature short sweep movements for that easy to read look you want when monitoring the vitals.

Included in the kit:

Gen II (70-81) Firebird mounting bracket kit

Speedometer 4-3/8" 140 MPH with Phoenix features and one additional analog input

Tachometer 4-3/8" 8,000 RPM with Phoenix features and 2 additional inputs

2-1/16" Fuel gauge 0-90 Ω (GM factory match)

2-1/16" Voltmeter 10-16V

2-1/16" Oil pressure 0-100 PSI

2-1/16" Water temp 140-280 F

Back-clamps

Incandescent bulbs

2 ea AMP connectors

Water temperature sender Hi Match

Oil pressure sender 240-33Ω 1/8-27 NPT

Bushing kit 1/8-27 NPT to 1/4", 3/8", 1/2"

*SPEED SENDER MAY BE REQUIRED CHECK YOUR APPLICATION

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: White
• Gauge Number Color: Black
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
