72690-01 1969 Series Direct-Fit Gauge Kit, Chevy Malibu 70-72, Black
InfoVehicle Info Needed
NEW VINTAGE USAPART NUMBER: 341-72690-01

72690-01 1969 Series Direct-Fit Gauge Kit, Chevy Malibu 70-72, Black

$87999
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Under-Dash Creeper [40 in. Length]

JEGS

Under-Dash Creeper [40 in. Length]

Part Number : 555-81153
$7999$87.99
You Save$8.00
Wire Crimping Pliers and Stripping Tool

JEGS

Wire Crimping Pliers and Stripping Tool

Part Number : 555-80575
$1399$15.99
You Save$2.00
Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

JEGS

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

Part Number : 555-80569
$899$9.99
You Save$1.00
Digital Multimeter

JEGS

Digital Multimeter

Part Number : 555-W2971
$1999$21.99
You Save$2.00

Direct-Fit Gauges
Direct-Fit Dash Gauge Kit
  • Fits Chevy Malibu 70-72
  • Factory Dash Opening Fit
  • CNC Laminate Mounting Panel
  • Phoenix Direct-Drive Wiring
  • Includes Speedo, Tach, Minor Gauges
  • Color: Black
  • Sold As A Kit

    New Vintage USA 72690-01 Features:

    Create a whole new performance look for your 70-72 Chevelle/Malibu Sweep dash with a NVU direct-fit kit. (Does not fit SS dash) NVU's exclusive CNC laminate bracket easily installs any NVU 6 gauge kit in your factory dash without modification to the factory bezel. Bolts right in using the OE mountings.

    Each kit is hand assembled in Detroit and features NVU’s unique mounting bracket, CNC laser cut and formed to precise specifications for a superior fit. Each kit comes complete with senders, factory-match fuel gauge (0-90). NVU instruments are easy to integrate with your old school engine or the latest LS powerplants. Programmable speedometer reads vehicle speed from most any aftermarket and OE speed senders (including GPS); can also read from a GM PCM. Tachometer operates from any ignition output or PCM.

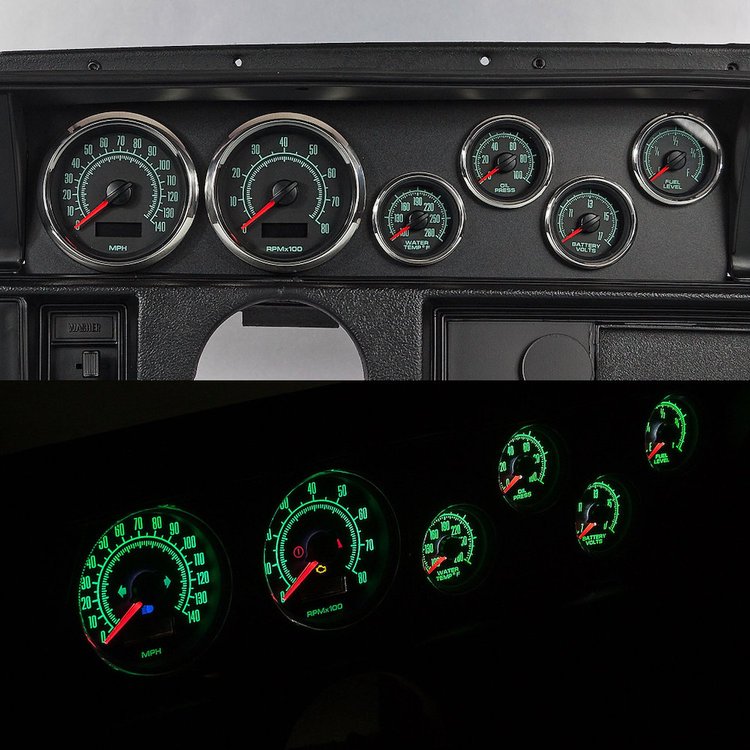

    NVU 1969 SERIES are the original backlit muscle car-themed instruments. Bold 60s mint green graphics on a black background with backlit red pointers topped with real glass lenses and hand polished stainless steel bezels. Great for any restoration, resto-mod or build where modern technology and vintage appearance is a must. Perfect for any 60s, 70s, musclecar, gasser, pro-touring dash gauges.

    Looks are only skin deep; all 1969 Series instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a 6 gauge kit.

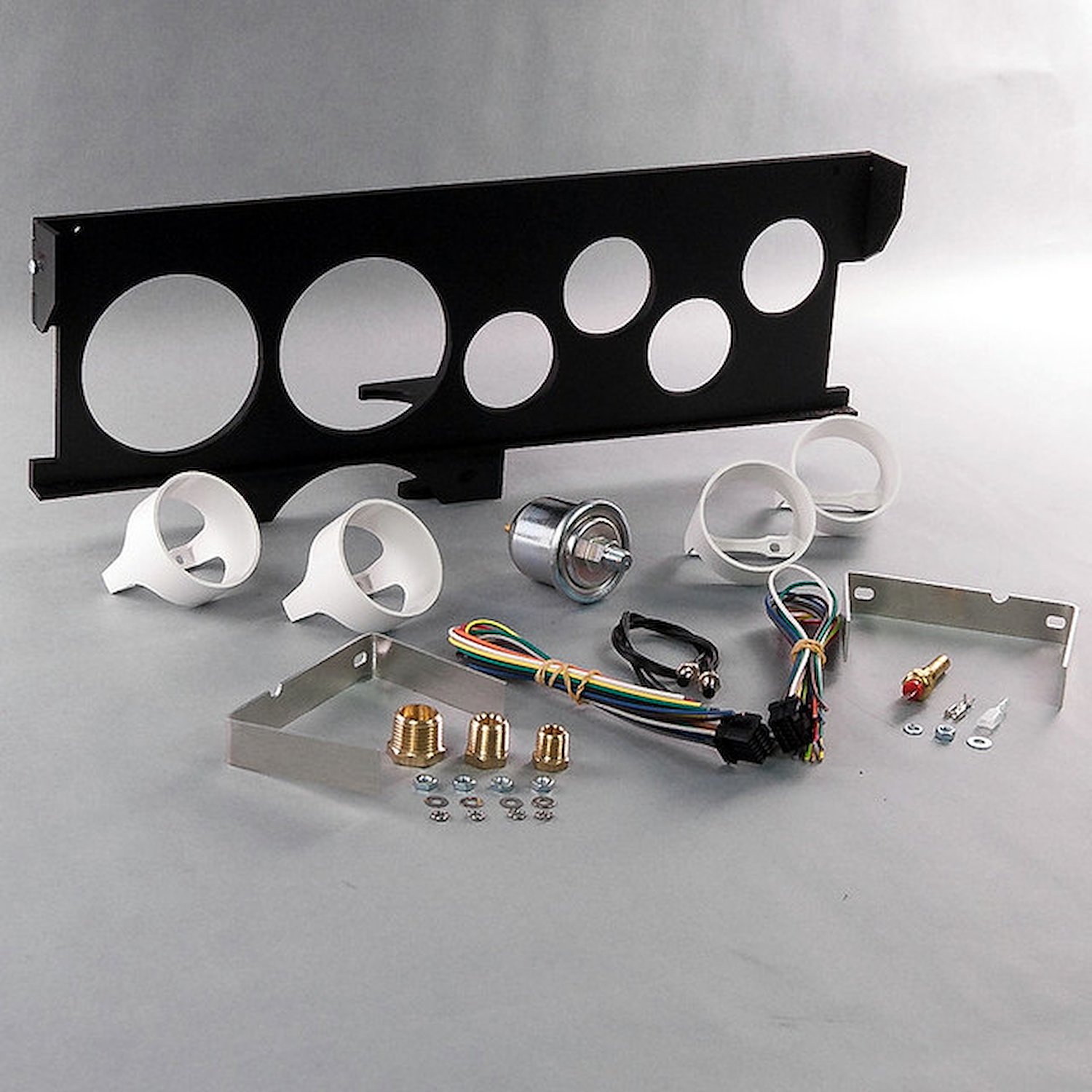

    Kit includes:

    70-72 Malibu/Chevelle SS Mounting bracket with detailed instructions and mounting hardware

    Built-in indicators (Turn signal, hi beam, warning lights)

    3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input

    3-7/16" Tachometer 8,000 RPM with TWO auxiliary inputs

    2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)

    Temperature gauge 140-280

    Oil pressure gauge 0-100 PSI

    Voltmeter 9-17V

    2 ea AMP connector harnesses

    2 ea Programming button

    Bushing kit

    Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

    Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

    * Speed sender may be required, check your application

    Specs:
    • Speedometer Gauge Included: Yes
    • Tachometer Gauge Included: Yes
    • Water Temperature Gauge Included: Yes
    • Oil Pressure Gauge Included: Yes
    • Voltage Gauge Included: Yes
    • Fuel Gauge Range: Yes
    • Fuel Sender Included: No
    • Bezel Included: Yes
    • Bracket Included: Yes
    • Speed Sender Included: No
    • Temperature Sender Included: Yes
    • Oil Pressure Sender Included: Yes
    • Wiring Harness Included: Yes
    • Indicator Lamps: Yes
    • Gauge Style: Analog
    • Gauge Dial Color: Black
    • Gauge Number Color: GREEN
    • Gauge Pointer Color: Red
    • Bezel Finish: Stainless
    • Gauge Lens: Flat Glass
  • Part TypeGauge
    BrandNEW VINTAGE USA
    Package Height8.0
    Package Width8.0
    Package Length24.0
    Weight5.0 PG
    Part CategoryAccessories
    Wiring Harness IncludedYes
    Gauge Pointer ColorRed
    Bracket IncludedYes
    Gauge Dial ColorBlack
    Oil Pressure Sender IncludedYes
    Water Temperature Gauge IncludedYes
    Bezel FinishStainless
    Bezel FinishStainless
    Tachometer Gauge IncludedYes
    Lens StyleFlat Glass
    Gauge StyleAnalog
    Gauge Number ColorGREEN
    Speedometer Gauge IncludedYes
    Bezel IncludedYes
    Voltage Gauge IncludedYes
    Oil Pressure Gauge IncludedYes
    Temperature Sender IncludedYes
    Indicator LampsYes
    Part FitmentDirect Fit
    Gauge TypeDirect-Fit Gauge Kit
    Fuel Sender IncludedNo
    Vendor Part Number72690-01
    Package Qty1
    Package TypeEA
