73026-01 Direct-Fit Gauge Kit, Chevy Truck 73-87, Black
InfoVehicle Info Needed
NEW VINTAGE USAPART NUMBER: 341-73026-01

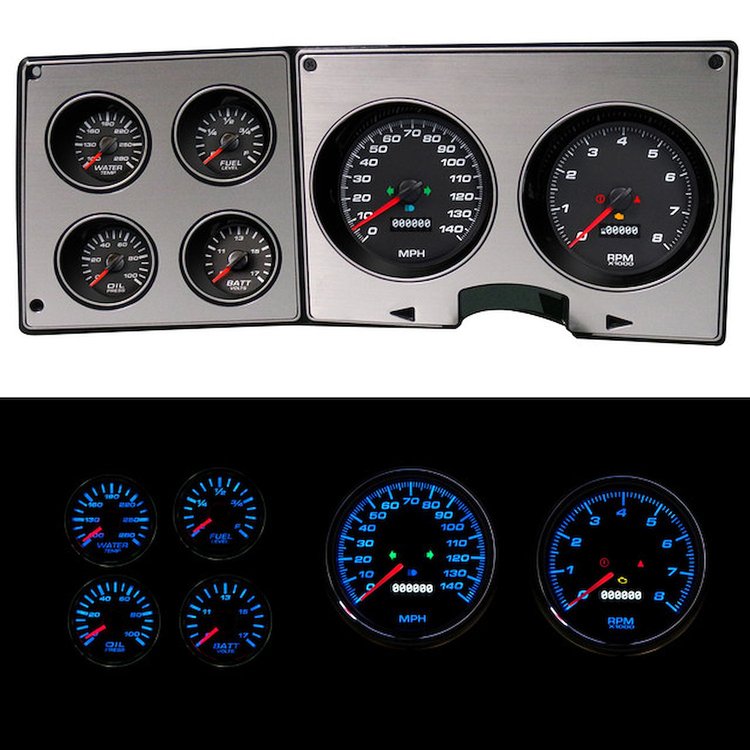

73026-01 Direct-Fit Gauge Kit, Chevy Truck 73-87, Black

$89999
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Under-Dash Creeper [40 in. Length]

JEGS

Under-Dash Creeper [40 in. Length]

Part Number : 555-81153
$7999$87.99
You Save$8.00
Wire Crimping Pliers and Stripping Tool

JEGS

Wire Crimping Pliers and Stripping Tool

Part Number : 555-80575
$1399$15.99
You Save$2.00
Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

JEGS

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

Part Number : 555-80569
$899$9.99
You Save$1.00
Digital Multimeter

JEGS

Digital Multimeter

Part Number : 555-W2971
$1999$21.99
You Save$2.00

Direct-Fit Gauges
Direct-Fit Dash Gauge Kit
  • Fits Chevy Truck 73-87
  • Factory Dash Opening Fit
  • CNC Laminate Mounting Panel
  • Phoenix Direct-Drive Wiring
  • Includes Speedo, Tach, Minor Gauges
  • Color: Black
  • Sold As A Kit

    New Vintage USA 73026-01 Features:

    New Vintage USA complete gauge packages for 1973-1987 GM full size trucks are designed to install in the factory location and update the style and functions in the dash. Each kit is hand assembled in Detroit and features NVU's unique mounting bracket, CNC laser cut and formed to precise specifications for a superior fit. Each kit comes complete with senders, factory-match fuel gauge (0-90). NVU instruments are easy to integrate with your old school engine or the latest LS powerplants. Programmable speedometer reads vehicle speed from any most any aftermarket and OE speed senders (including GPS); can also read from a GM PCM. Tachometer operates from any ignition output or PCM.

    Kits include NVU exclusive mounting bracket and hardware, 4-3/8" programmable speedometer, 4-3/8" programmable tachometer operates on any cylinder configuration, 2-1/16" oil pressure, water temperature, volt and 0-90 fuel gauge. (0-90 ohm factory match fuel gauge utilizes stock sender-not included). Sender bushings, jumper wiring harnesses where required and programming button.

    Kits feature NVU's exclusive Phoenix Direct Drive technology our easy to use wiring! Learn more about NVU's about Direct Drive and all of its features HERE>>>

    The Performance II gauge style brings an updated performance look without the "in your face" look of a racing gauge, with bold graphics, blue back lighting and lit pointer.

    Bold styling

    Easy programming and setup

    Built-in indicators (Turn signal, hi beam, warning lights)

    4-3/8" Speedometer 140 MPH programmable with 1 auxiliary input

    4-3/8" Tachometer 8,000 RPM with TWO auxiliary inputs

    2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)

    Temperature gauge 140-280 F

    Oil pressure gauge 0-100 PSI

    Voltmeter 9-17V

    2 ea AMP connector harnesses

    2 ea Programming buttons

    Bushing kit

    Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

    Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

    73-87 GM Truck bracket

    Specs:
    • Speedometer Gauge Included: Yes
    • Tachometer Gauge Included: Yes
    • Water Temperature Gauge Included: Yes
    • Oil Pressure Gauge Included: Yes
    • Voltage Gauge Included: Yes
    • Fuel Gauge Range: Yes
    • Fuel Sender Included: No
    • Bezel Included: Yes
    • Bracket Included: Yes
    • Speed Sender Included: No
    • Temperature Sender Included: Yes
    • Oil Pressure Sender Included: Yes
    • Wiring Harness Included: No
    • Indicator Lamps: Yes
    • Gauge Style: Analog
    • Gauge Dial Color: Black
    • Gauge Number Color: White
    • Gauge Pointer Color: Red
    • Bezel Finish: Black
    • Gauge Lens: Flat Glass
  • Part TypeGauge
    BrandNEW VINTAGE USA
    Package Height8.0
    Package Width8.0
    Package Length24.0
    Weight6.0 PG
    Part CategoryAccessories
    Wiring Harness IncludedNo
    Gauge Pointer ColorRed
    Bracket IncludedYes
    Gauge Dial ColorBlack
    Oil Pressure Sender IncludedYes
    Water Temperature Gauge IncludedYes
    Bezel FinishBlack
    Bezel FinishBlack
    Tachometer Gauge IncludedYes
    Lens StyleFlat Glass
    Gauge StyleAnalog
    Gauge Number ColorWhite
    Speedometer Gauge IncludedYes
    Bezel IncludedYes
    Voltage Gauge IncludedYes
    Oil Pressure Gauge IncludedYes
    Temperature Sender IncludedYes
    Indicator LampsYes
    Part FitmentDirect Fit
    Gauge TypeDirect-Fit Gauge Kit
    Fuel Sender IncludedNo
    Vendor Part Number73026-01
    Package Qty1
    Package TypeEA
