New Vintage USA 73153-53 Features:

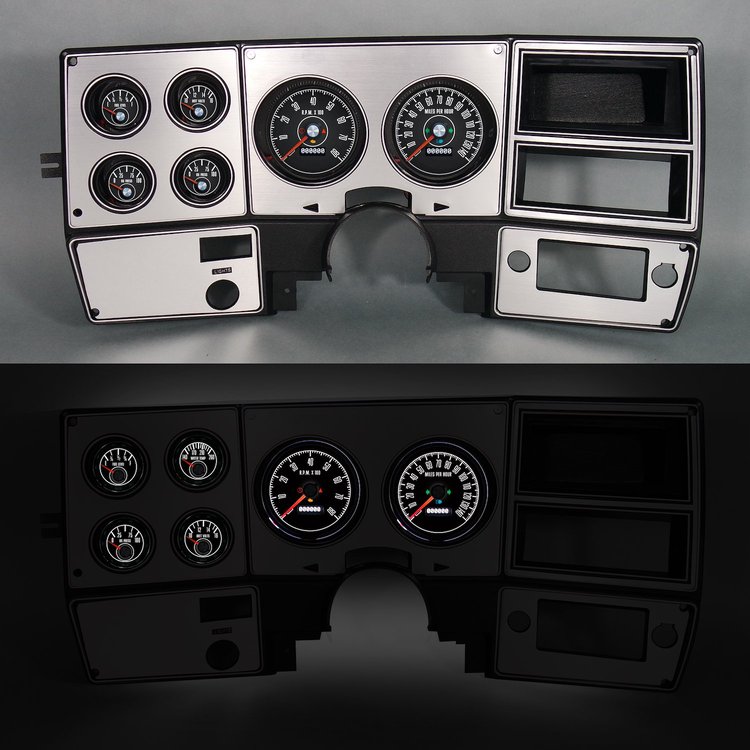

New Vintage USA complete gauge packages for 1973-1987 GM full size trucks are designed to install in the factory location and update the style and functions in the dash.
Kits include NVU exclusive mounting bracket and hardware, 4-3/8" programmable speedometer, 4-3/8" programmable tachometer operates on any cylinder configuration, 2-1/16" oil pressure, water temperature, volt and 0-90 fuel gauge. (0-90 ohm factory match fuel gauge utilizes stock sender-not included). Sender bushings, jumper wiring harnesses where required and programming button.
Exclusively Crafted by NVU
Indulge in the pinnacle of automotive sophistication with the NVU M-153 series. Continuing the legacy set by the iconic 1967 Series, these instruments transcend time, blending exquisite 60s aesthetics with cutting-edge technology. Crafted exclusively by NVU, this series captures the essence of automotive excellence in a way that is truly unmatched.

LED backlighting
Bold styling
Easy programming and setup
Built-in indicators (Turn signal, hi beam, warning lights)
4-3/8" Speedometer 140 MPH programmable with 1 auxiliary input
4-3/8" Tachometer 8,000 RPM with TWO auxiliary inputs
2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)
Temperature gauge 140-280 F
Oil pressure gauge 0-100 PSI
Voltmeter 9-17V
2 ea AMP connector harnesses
2 ea Programming buttons
Bushing kit
Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)
Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)
73-87 GM Truck bracket
**Speed sender may be required, please check your application

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: No
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
