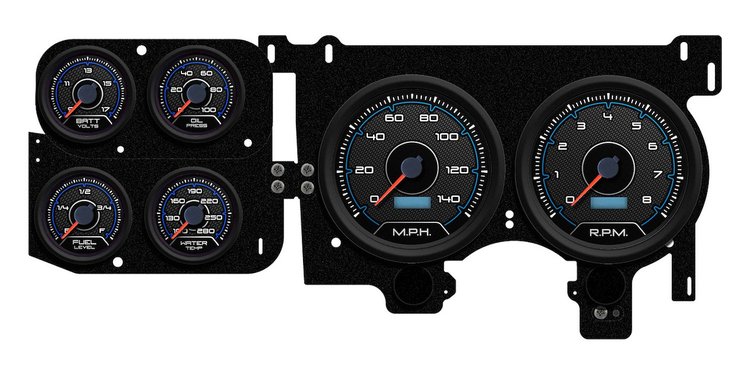

New Vintage USA 73206-05 Features:

New Vintage USA complete gauge packages for 1973-1987 GM full size trucks are designed to install in the factory location and update the style and functions in the dash. Each kit is hand assembled in Detroit and features NVU’s unique mounting bracket, CNC laser cut and formed to precise specifications for a superior fit. Each kit comes complete with senders, factory-match fuel gauge (0-90). NVU instruments are easy to integrate with your old school engine or the latest LS powerplants. Programmable speedometer reads vehicle speed from any most any aftermarket and OE speed senders (including GPS); can also read from a GM PCM. Tachometer operates from any ignition output or PCM.

Gen II stepper motor gauges feature LED backlighting with lit pointer, selectable inputs and dampened input-selectable fuel gauge pre-set to GM match 0-90.

Kits include NVU exclusive mounting bracket and hardware, 4-3/8” programmable speedometer, 4-3/8” programmable tachometer operates on any cylinder configuration, 2-1/16" oil pressure, water temperature, volt and 0-90 fuel gauge. (0-90 ohm factory match fuel gauge utilizes stock sender-not included). Sender bushings, jumper wiring harnesses where required and programming button.

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: No
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black/Blue
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
