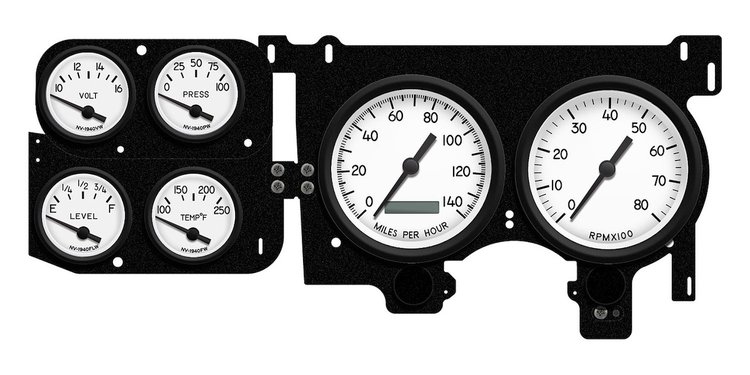

New Vintage USA 73406-03 Features:

New Vintage USA complete gauge packages for 1973-1987 GM full size trucks are designed to install in the factory location and update the style and functions in the dash. Each kit is hand assembled in Detroit and features NVUÂ?s unique mounting bracket, CNC laser cut and formed to precise specifications for a superior fit.

Kits include NVU exclusive mounting bracket and hardware, 4-3/8" programmable speedometer, 4-3/8" programmable tachometer operates on any cylinder configuration, 2-1/16" oil pressure, water temperature, volt and 0-90 fuel gauge. (0-90 ohm factory match fuel gauge utilizes stock sender-not included). Sender bushings, jumper wiring harnesses where required and programming button.

1940 kits feature NVU's exclusive Phoenix Direct Drive technology our easy to use wiring! Learn more about NVU's about Direct Drive and all of its features HERE>>>

Bold styling

Dome Lenses

Easy programming and setup

Built-in indicators (Turn signal, hi beam, warning lights)

4-3/8" Speedometer 140 MPH programmable with 1 auxiliary input

4-3/8" Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge(0-90 ohm setting)

Temperature gauge 140-280 F

Oil pressure gauge 0-100 PSI

Voltmeter 9-17V

2 ea AMP connector harnesses

2 ea Programming buttons

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

73-87 GM Truck bracket

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: No
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: White
• Gauge Number Color: Black
• Gauge Pointer Color: Red
• Bezel Finish: Stainless Steel
• Gauge Lens: Domed Glass
