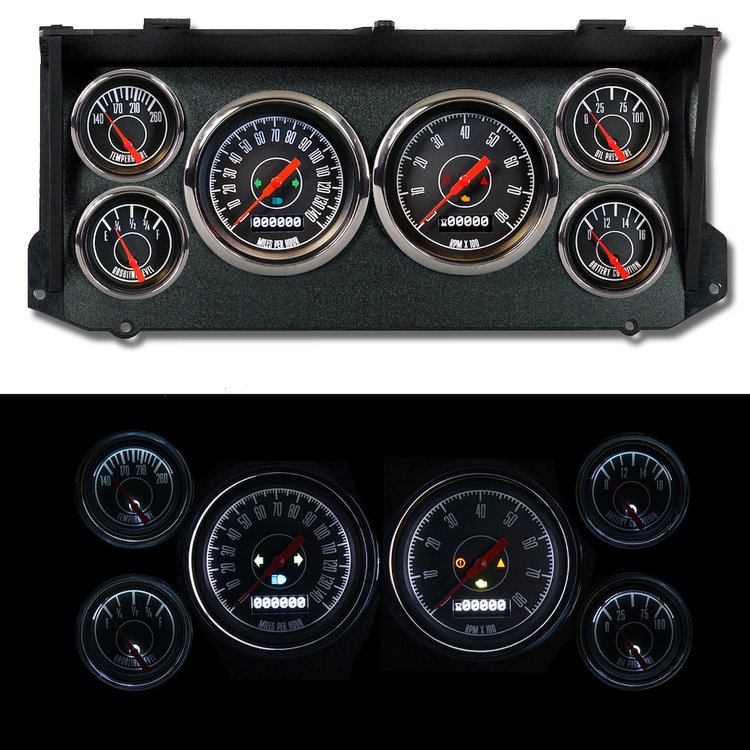

New Vintage USA 76067-01 Features:

NVU gauge kits for 76-91 Ford vans and the perfect way to add that custom touch to your van's dash! Chances are your gauges already aren't up to the task so its a perfect time to upgrade the style and function! NVU's exclusive mounting system installs a wide range of gauge styles and layouts to fit your ride perfectly! Choose from mild to wild, its up to you! This bracket is exclusive to the Ford van, unlike other products on the market at "fit" both vans and trucks.
Don’t forget NVU’s SNAP-ADAPT makes wiring virtually plug-and play. All Ford van kits use 99501-05 Ford 18-pin.
All kits with Programmable speedometer and tachometer feature NVU's exclusive Phoenix Direct Drive! Easy Driver gauge/minor gauge installation with features found in modern OE vehicles.
KITS INCLUDE:
LED backlighting
Bold styling
Easy programming and setup
Built-in indicators (Turn signal, hi beam, warning lights)
3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input
3-7/16" Tachometer 8,000 RPM with TWO auxiliary inputs
2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)
Temperature gauge 140-280 F
Oil pressure gauge 0-100 PSI
Voltmeter 9-17 V
2 ea AMP connector harnesses
2 ea Programming buttons
Bushing kit
Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)
Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

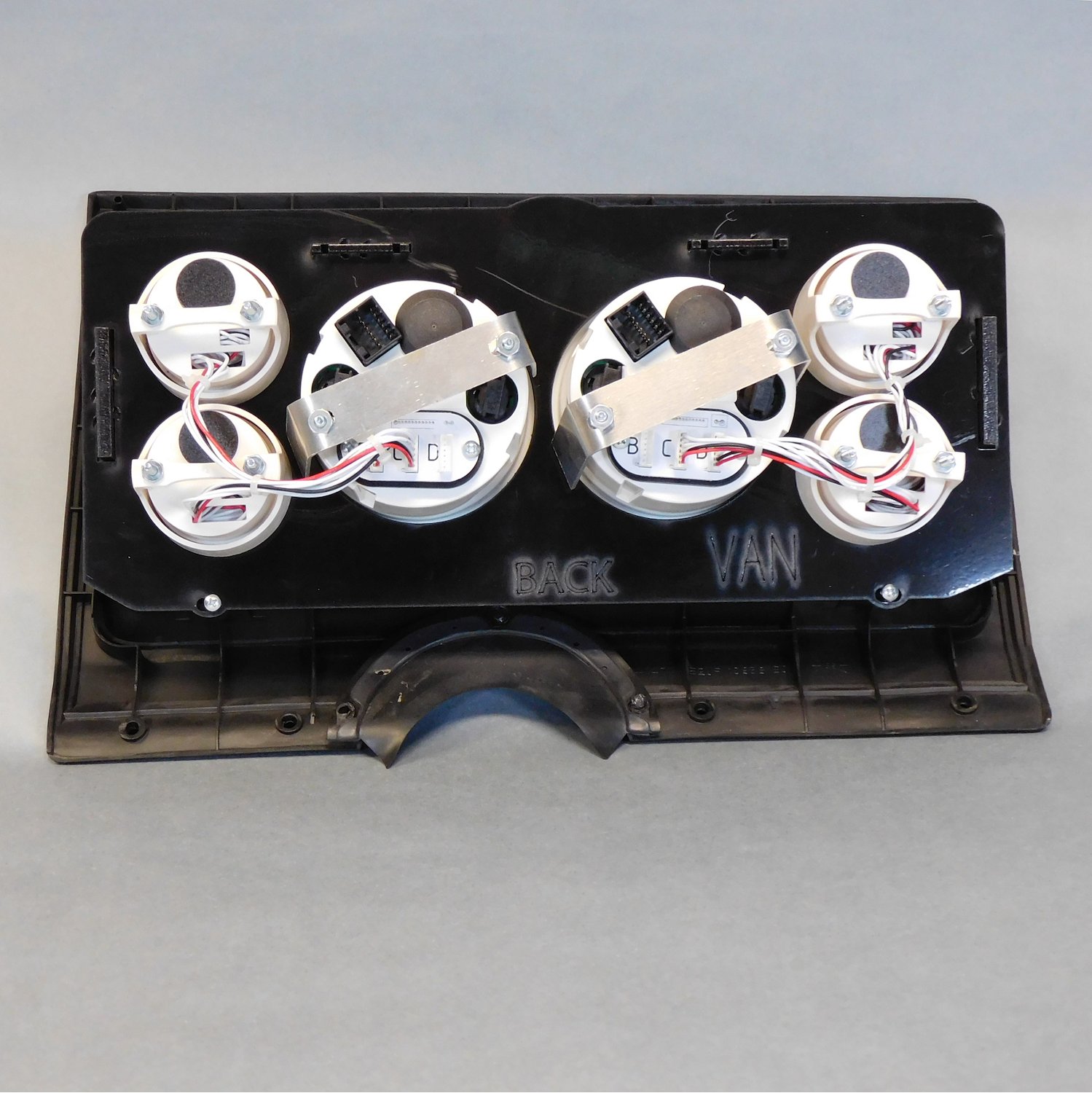

76-91 Ford Van Mounting bracket
*Speed sender may be required check your application

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: No
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Stainless
• Gauge Lens: Flat Glass
