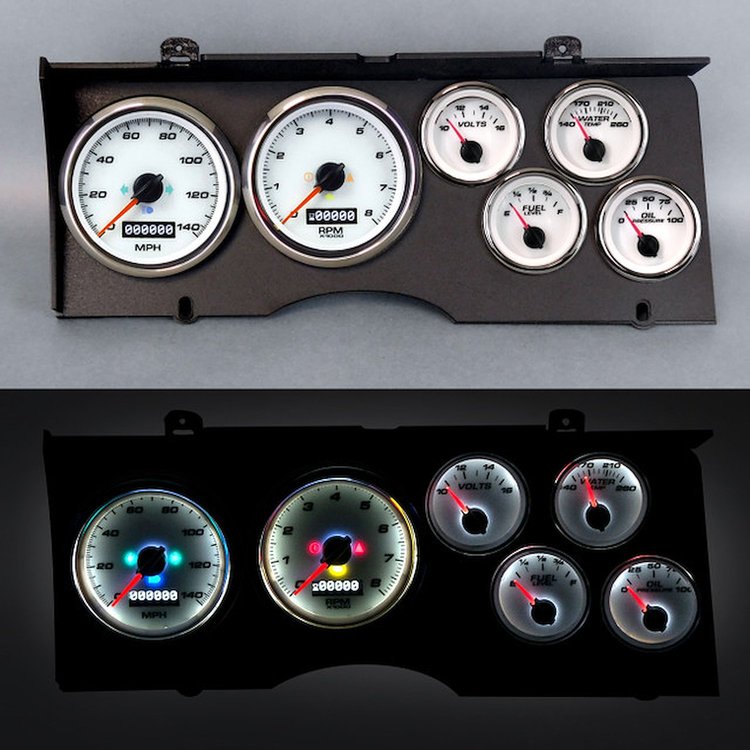

New Vintage USA 78111-03 Features:

Custom gauge clusters for 78-81 Chevy G-Body cars bring your dash up to snuff. The first instrument product available anywhere that enables the installation of aftermarket gauges in the stock location utilizing the factory dash bezel for a clean, professional look. NVU style will make your dash look and perform as good as the rest of your build. Kits start off with NVU's exclusive CNC laser cut laminate mounting bracket with integrated deadfronted turn signals, hi beam, check engine and brake lamps incorporated. May require speed sender for electronic speedometers, check your application. Need to add-on? NVU offers a full line of matching gauges in functions form Air-Fuel ratio, oil temp, trans temp and vacuum/boost.

Performance Series gauges feature air core meters and incandescent perimeter lighting (works with factory dimmer).

Great style and performance from NVU. The Performance line has been a great success over the years for NVU, great OEM style performance graphics look modern and racy without being over the top, a perfect match for Pro-touring builds. Don’t let the good looks fool you, these are the same shock-proof, water-proof durable components we use in our commercial and military lines. Scratch resistant Titanium-smoked bezels, real glass lenses, all make for a great product. Traditional perimeter lighting for easy viewing at night

Kit includes:

Speedometer, 3-3/8" Programmable electronic 140 MPH

Tachometer 3-3/8"

Fuel gauge 2-1/16", 0-90 ohm factory match

Water temperature gauge 2-1/16:

Oil pressure gauge 2-1/16"

Voltmeter 2-1/16"

Oil pressure and water temperature senders

Bushing kit

Mounting bracket

Instruction booklet

Mounting hardware for gauges

* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock GM transmission or PCM output.

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: No
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Titanium Smoke
• Gauge Lens: Flat Glass
