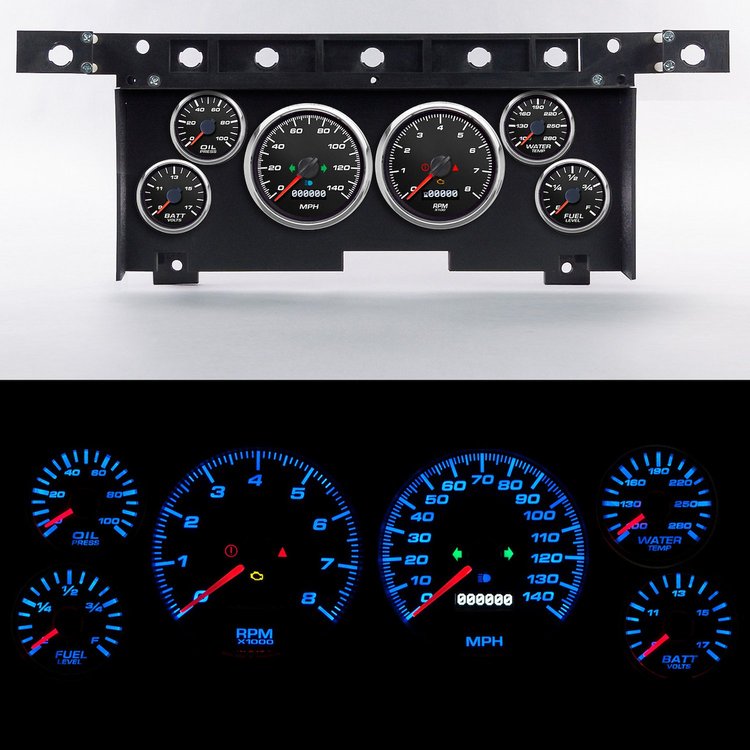

New Vintage USA 80026-01 Features:

Take your dash to the next level with a gauge package from NVU. The ABS/Polycarbonate laminate panel is virtually indestructible and allows the installation of any style NVU 6 gauge kit in the factory opening with minimal modifications. Kit can use optional stock upper indicators if desired. Monitor your engine's vitals while having a new, updated look with modern movements, features, style and NVU's exclusive Phoenix technology.

Kits include Speedometer, Tachometer, Temperature, oil pressure and Fuel (73-10 factory match) gauges, temp and pressure sender and mounting kit.

*Speed sender may be required-check your application.

NVU Performance II gauges are a real upgrade to any dash. Modern OE technology behind the scenes all backed by Phoenix technology. Bold blue backlit graphics say updated but without going over the top. Backlit pointers, full sweep minor gauges and glass lenses.

More on our phoenix platform can be found HERE>

Included in the kit:

70-81 Firebird mounting bracket

Built-in indicators (Turn signal, hi beam, warning lights)

3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input

3-7/16"Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)

Temperature gauge 140-280 F

Oil pressure gauge 0-100 PSI

Voltmeter 9-17V

2 ea AMP connector harnesses

2 ea Programming buttons

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

80-86 Ford truck bracket assembly

Bulb assembles

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Stainless
• Gauge Lens: Flat Glass
