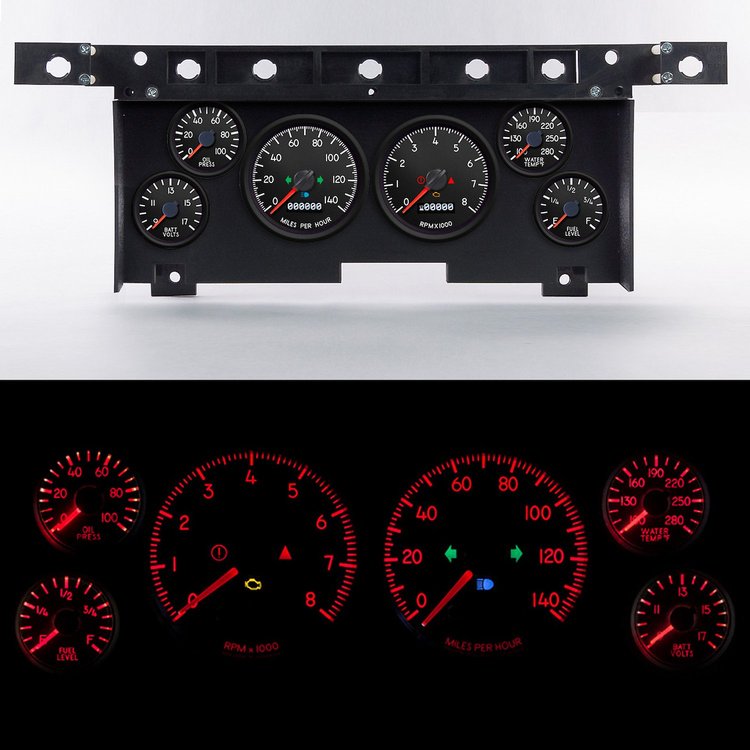

New Vintage USA 80226-01 Features:

Take your dash to the next level with a gauge package from NVU. The ABS/Polycarbonate laminate panel is virtually indestructible and allows the installation of any style NVU 6 gauge kit in the factory opening with minimal modifications. Kit can use optional stock upper indicators if desired. Monitor your engine's vitals while having a new, updated look with modern movements, features, style and NVU's exclusive Phoenix technology.

Kits include Speedometer, Tachometer, Temperature, oil pressure and Fuel (73-10 factory match) gauges, temp and pressure sender and mounting kit.

*Speed sender may be required-check your application.



AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether it’s race, off road or daily driver. LED backlit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and waterproof up to 35 PSI from the front,. The AVAITOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles.



Great choice for a hot rod with a modern twist, Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night.

More on our phoenix platform can be found HERE>

Included in the kit:

70-81 Firebird mounting bracket

Built-in indicators (Turn signal, hi beam, warning lights)

3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input

3-7/16"Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)

Temperature gauge 140-280 F

Oil pressure gauge 0-100 PSI

Voltmeter 9-17V

2 ea AMP connector harnesses

2 ea Programming buttons

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

80-86 Ford truck bracket assembly

Bulb assembles

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
