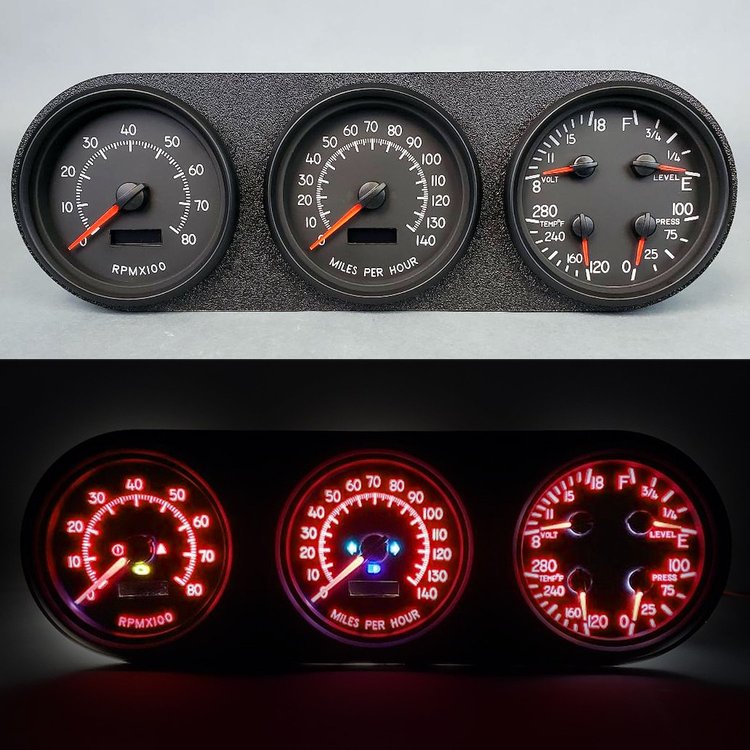

New Vintage USA 81441-01 Features:

NVU gauge kits for 81-93 Dodge Ram Trucks are a great way to update the dash visually and functionally. Great style only from NVU offers modern lighting and features found in newer vehicles while fitting nicely in the stock dash holes with the provided filler piece.

AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether it’s race, off road or daily driver. LED backlit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and spin-on back clamp with vibration dampening o-ring, waterproof up to 35 PSI from the front,. The AVAITOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles.

A great choice for a hot rod with a modern twist, Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night.

KIT INCLUDES:

Speedometer gauge 4-3/8" mounting hole, programmable with OLED display 140 MPH with turn signals and hi beam'

Tachometer gauge 4-3/8" mounting hole, programmable with OLED display with warning lamps

Quad gauge 4-3/8" mounting hole with Fuel (programmable inputs see manual for details) temperature, pressure and vehicle voltage

AMP Plug wiring harnesses with color-coded wiring

Back clamps

Oil pressure sender 1/8-27 thread 240-33 Ω

Temperature sender (high match 500-30 Ω)

Bushing kit with 1/4, 3/8 and 1/2" thread

ABS filler panel (1/8" thick, textured)

* Speed sender may be required, check your application

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: No
• Bracket Included: No
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat
