New Vintage USA 82021-03 Features:

Finally, a gauge package for 82-92 Pontiac Firebird! NVU brings BOLD style and modern features to your dash with these 4- gauge kits. Installs behind the factory bezel with included mounting bracket—or can be installed in the factory bezel for that aftermarket look. (Some modifications may be required please check the instruction booklet). Kit works on early (82-84) and late (85-92) panels.
Easy to read, exciting new graphics and colors to bring that dash into the 21st century. Features like LED backlighting, large graphics, performance timers, settable odometer mileage, built-in indicators and more—all without drivers, modules or boxes. Gauges can operate on virtually any engine combination from old-school points and carbs to modern EFI and GM LS and LT engines.
Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Stainless or bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.
Looks are only skin deep; all Performance II instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6-gauge kits with OLED screens feature Phoenix Direct Drive technology, by far the easiest way to wire up a 6-gauge kit.

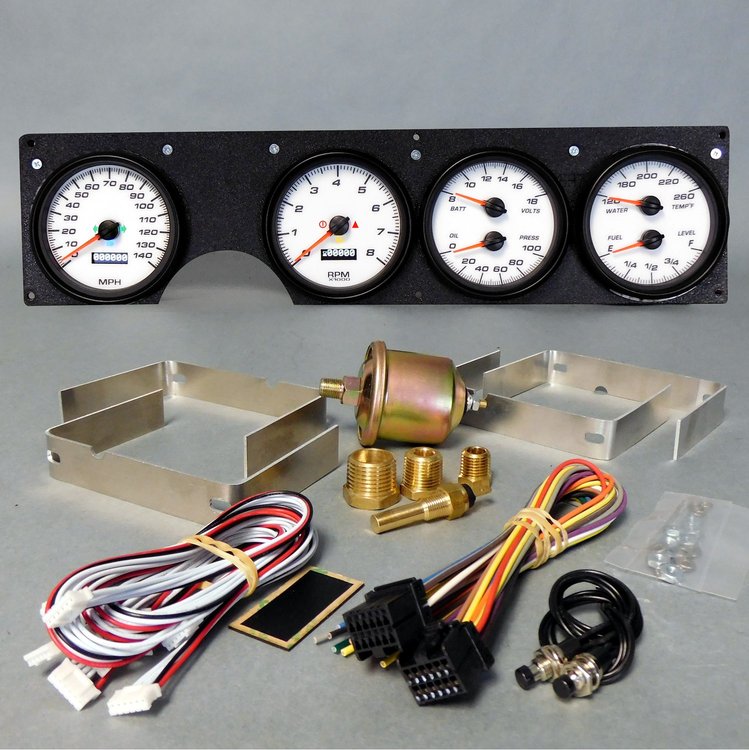

KIT INCLUDES:
82-92 Firebird mounting panel.
Mounting hardware
Speedometer 4-3/8"
Tachometer 4-3/8"
Dual gauge 4-3/8" Volts/Pressure
Dual gauge 4-3/8" Temperature/Fuel (0-90 Ω)
Oil pressure sender
Temperature sender
Bushing kit
Programming buttons
AMP harnesses
Direct drive harnesses
Back clamps
Gauge mounting hardware.
** Speed sender may be required--not included please check your application

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: Yes
• Bezel Included: No
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: White
• Gauge Number Color: Black
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
