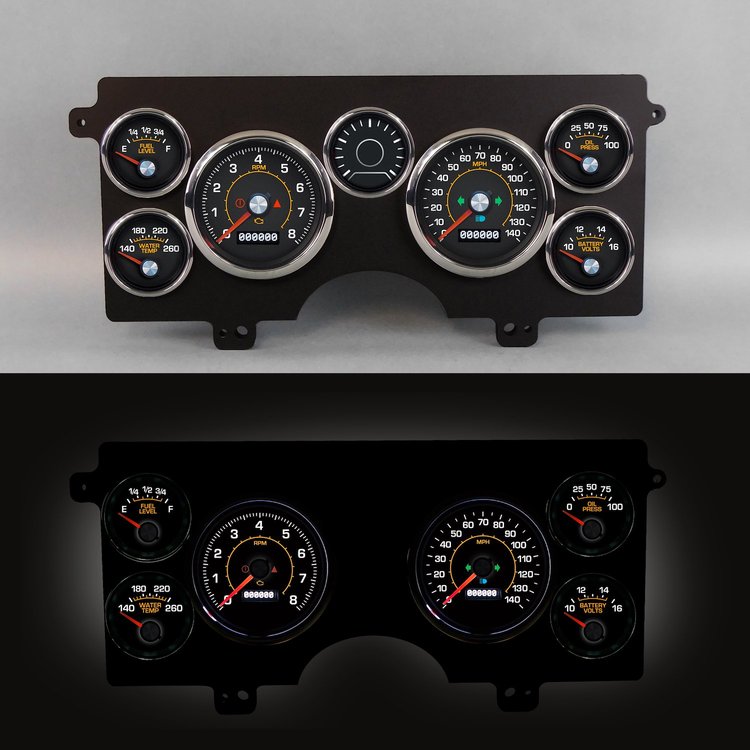

84278-78 M-102 Series Direct-Fit Gauge Kit, Buick Regal
InfoVehicle Info Needed
NEW VINTAGE USAPART NUMBER: 341-84278-78

84278-78 M-102 Series Direct-Fit Gauge Kit, Buick Regal

$89999
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Direct-Fit Gauges
Direct-Fit Dash Gauge Kit
  • Fits Buick Regal
  • Factory Dash Opening Fit
  • CNC Laminate Mounting Panel
  • Phoenix Direct-Drive Wiring
  • Includes Speedo, Tach, Minor Gauges
  • Sold As A Kit

    New Vintage USA 84278-78 Features:

    NVU has been building these for years a s a custom, now its finally available as a standard part! Bring your 84-87 Buick Regal N/A (natural aspiration non-turbo) dash to the next level with a complete kit from NVU. Designed to fit similar to the GNX style, the exclusive laminate printed CNC cut bracket bolts to the stock mounting tabs. The printed acrylic trim with black and silver finish adds a touch of class and cleans up any ragged edges left from trimming. (trimming of stock bezel required, see instructions). NVU also included deadfronted (now you see it, now you don't) turn signals, hi beam and warning lamps to the panel for a clean, professional look. Kits include matching center filler gauge that can be removed in the event you need to add on a matching gauge for boost, trans temp, oil temp, etc..
    Exclusively from NVU!
    Reignite the timeless charm of the 70s and 80s with the NVU M-102 series – a groundbreaking leap in dash aesthetics. Immerse yourself in the captivating blend of retro inspiration and modern engineering, meticulously crafted to infuse your ride with an irresistible allure echoing the era that left an indelible mark.
    Unveil Iconic Essence
    The M-102 series breathes life into the cherished design ethos of the 70s and 80s, capturing the essence that defined generations. Drawing from classics, NVU reimagines these iconic styles through a contemporary lens, presenting an artistic homage to the past while embracing future aspirations.
    Kit includes:
    Speedometer, 3-3/8" Programmable electronic 140 MPH
    Tachometer 3-3/8"
    Filler gauge
    Fuel gauge 2-1/16", 0-90 ohm factory match
    Water temperature gauge 2-1/16:
    Oil pressure gauge 2-1/16"
    Voltmeter 2-1/16"
    Oil pressure and water temperature senders
    Bushing kit
    Mounting bracket
    Instruction booklet
    Mounting hardware for gauges
    * Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.

    Specs:
    • Speedometer Gauge Included: Yes
    • Tachometer Gauge Included: Yes
    • Water Temperature Gauge Included: Yes
    • Oil Pressure Gauge Included: Yes
    • Voltage Gauge Included: Yes
    • Fuel Gauge Range: Yes
    • Fuel Sender Included: No
    • Bezel Included: No
    • Bracket Included: Yes
    • Speed Sender Included: No
    • Temperature Sender Included: Yes
    • Oil Pressure Sender Included: Yes
    • Wiring Harness Included: Yes
    • Indicator Lamps: Yes
    • Gauge Style: Analog
    • Gauge Dial Color: Black
    • Gauge Number Color: White
    • Gauge Pointer Color: Red
    • Bezel Finish: Stainless
    • Gauge Lens: Flat Glass
  • Part TypeGauge
    BrandNEW VINTAGE USA
    Package Height8.0
    Package Width8.0
    Package Length24.0
    Weight5.0 PG
    Part CategoryAccessories
    Wiring Harness IncludedYes
    Gauge Pointer ColorRed
    Bracket IncludedYes
    Gauge Dial ColorBlack
    Oil Pressure Sender IncludedYes
    Water Temperature Gauge IncludedYes
    Bezel FinishStainless
    Bezel FinishStainless
    Tachometer Gauge IncludedYes
    Lens StyleFlat Glass
    Gauge StyleAnalog
    Gauge Number ColorWhite
    Speedometer Gauge IncludedYes
    Bezel IncludedNo
    Voltage Gauge IncludedYes
    Oil Pressure Gauge IncludedYes
    Temperature Sender IncludedYes
    Indicator LampsYes
    Part FitmentDirect Fit
    Gauge TypeDirect-Fit Gauge Kit
    Fuel Sender IncludedNo
    Vendor Part Number84278-78
    Package Qty1
    Package TypeEA
