New Vintage USA 88103-01 Features:

Been looking to upgrade that cluster in your F-Series to bring it into this century? NVU kits for 87-91 Ford Full Size may be just way you are looking for. NVU's unique mounting bracket allows for installation of any NVU 6 gauge kit. Fits in the stock location for a clean professional look. All Phoenix Direct Drive kits feature turn signals, hi beam and warning lights built right into the instruments. Select the style that fits the theme of your build, with the widest range of options available anywhere! Kits include Bracket, instruments and direct-factory match fuel gauge (73-10 ohm)

CFR series instruments bring a new level of design, technology and features to the aftermarket. Exotic muscle graphics incorporating textures and colors in a way that says high-class, high tech and performance all at the same time. Textured inner dial with colored accents and bold numbers will make your dash stand out. Great for any resto-mod or pro-touring build. Topped with waterproof glass lenses and stainless bezels, the CFR series is sure to get your attention while monitoring vital components. Any build that demands exotic, high tech design will set the bar for dash design with the CFR series instruments

Looks are only skin deep; all Performance instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a 6 gauge kit.

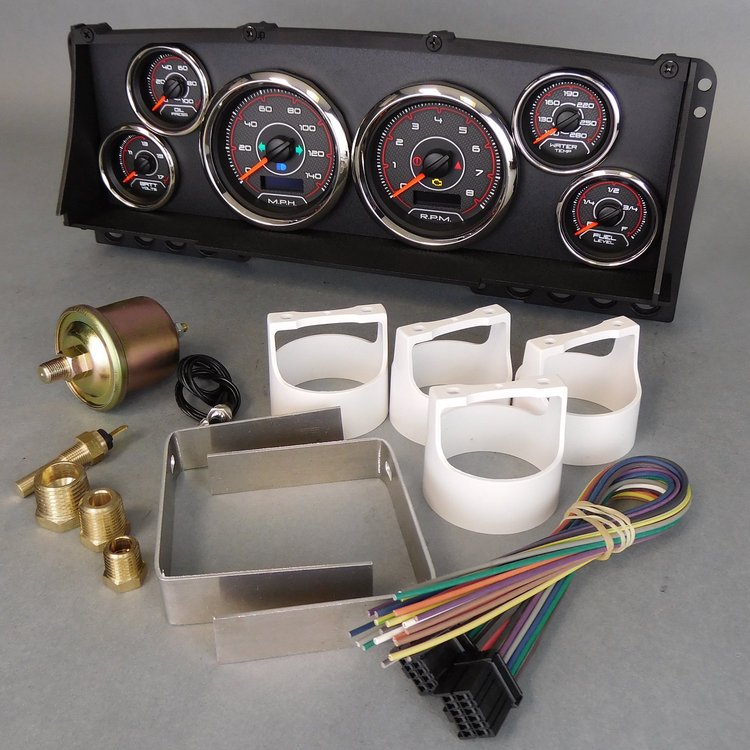

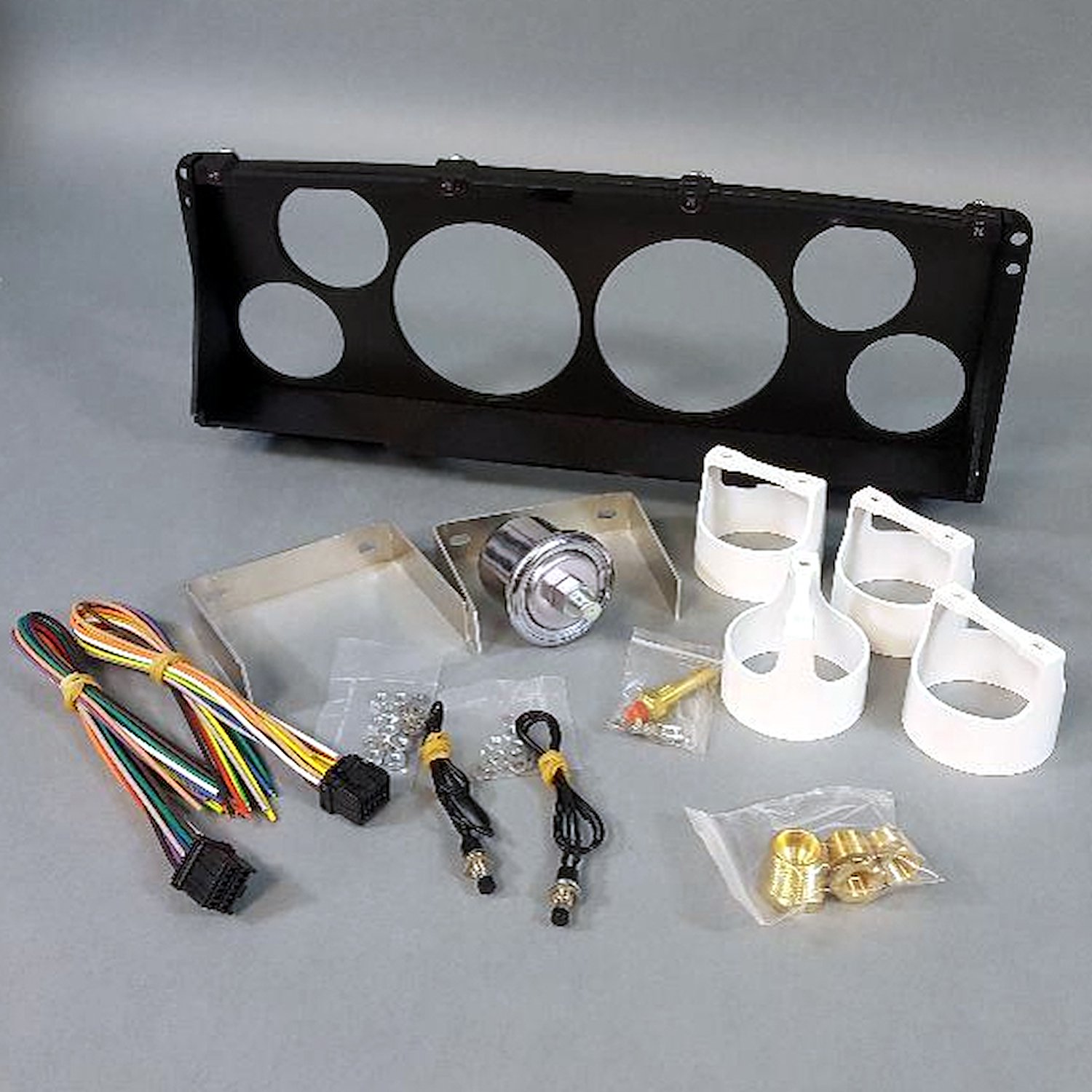

Included in the kit:

78-96 Ford F/S Truck mounting bracket

Built-in indicators (Turn signal, hi beam, warning lights)

3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input

3-7/16"Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings

Temperature gauge 140-280

Oil pressure gauge 0-100 PSI

Voltmeter 9-17V

2 ea AMP connector harnesses

2 ea Programming button

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

* Speed sender may be required, check your application

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Stainless
• Gauge Lens: Flat Glass
