New Vintage USA 88321-03 Features:

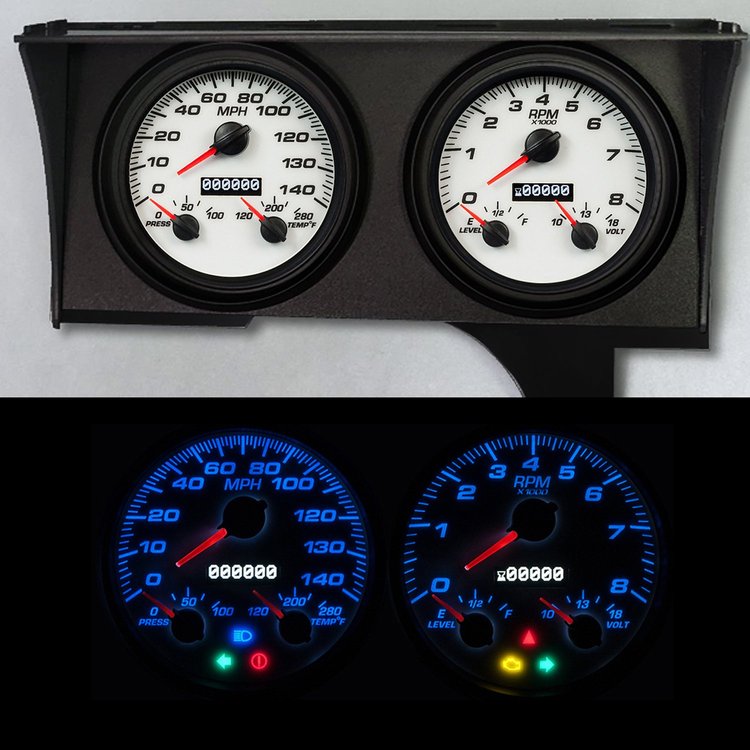

NVU gauge packages for your 78-88 Monte Carlo with the 6-gauge setup take your dash to the next level with features and styling you won't find anywhere else. Featuring our famous 3-1 gauges, completely change the look of the dash and improve the readability of your instruments with this easy to install kit. Kit includes gauges, temperature, pressure senders, AMP plugs, mounting bracket and hardware. Instruments can operate on stock or modified engines, including PCM controlled TPI, TBI and LS.

Need more? Add-on a oil temp, boost, air/fuel gauge below for a complete package.

PERFORMANCE II Series 3-1 gauges use NVU's exclusive Phoenix technology featuring fully programmable inputs, displays and high-tech OLED screens. Programmable speedometer is set up in minutes and can operate via any OE or aftermarket speed sender, PCM (computer) or GPS antenna. Programmable fuel gauge has virtually every setting for most fuel senders, no more dropping the tank. Tachometer has interface for easy set up to virtually and ignition system. Deadfronted (hidden) indicators with up to 6 lights come standard along with LED backlighting and lit pointers. Installation is easy with our new AMP plug connections, only 1 plug per gauge for all functions.

Kits include:

78-88 Monte Carlo Mounting bracket

4-3/8" Speedometer (140 MPH) with water temp and oil pressure

4-3/8" Tachometer (8,000 RPM) with programmable fuel gauge and voltmeter

Backclamps

AMP plug connectors with color coded wiring harness

Oil pressure sender (240-33 ohm)

Temperature sender (NVU hi match)

Hardware kit

Bushing kit

Detailed instructions

Notes:

Will not fit sweep style dash, see 78-81 Malibu/Monte/ElCamino

Requires some minor dash trimming (not visible when installed, see installation instructions

Not plug-and play, requires standard gauge wiring to plug (see installation instructions)

* may require speedometer sender - NOT INCLUDED-see accessory section

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: Yes
• Bezel Included: No
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: White
• Gauge Number Color: Black
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
