New Vintage USA 89101-03M Features:

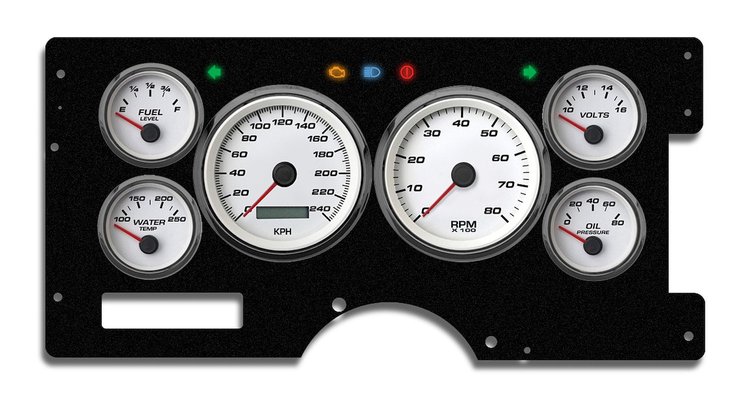

NVU gauge packages for 88-94 full size trucks bring some class to the dash! 6 gauges packed into an NVU exclusive CNC laminate printed cluster bracket with turn signals and indicators. Installs in the factory location and can incorporate the stock shift indicator (PRNDL). Installs using the OE cluster visor for a clean, professional looking installation. Included 0-90 (factory match) fuel gauge. Gauges can be repositioned to your liking and must be wired up by splicing into harness as in most aftermarket installations (not plug-and-play) Programmable speedometers can operate on stock VSS (speed sender) or PCM output; Tachometers can read from HEI, any coil or PCM output.

Performance Series gauges feature air core meters and incandescent perimeter lighting (works with factory dimmer).

Great style and performance from NVU. The performance line has been a great success over the years for NVU, great OEM style performance graphics look modern and racy without being over the top, a perfect match for Pro-touring builds. Don’t let the good looks fool you, these are the same shock-proof, water-proof durable components we use in our commercial and military lines. Scratch resistant Titanium-smoked bezels, real glass lenses, all make for a great product. Traditional perimeter lighting for easy viewing at night

Kit includes:

Speedometer, 3-3/8" Programmable electronic 240 kph

Tachometer 3-3/8"

Fuel gauge 2-1/16", 0-90 ohm factory match

Water temperature gauge 2-1/16:

Oil pressure gauge 2-1/16"

Voltmeter 2-1/16"

Oil pressure and water temperature senders

Bushing kit

Mounting bracket

Instruction booklet

Mounting hardware for gauges

* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: No
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Titanium Smoke
• Gauge Lens: Flat Glass
