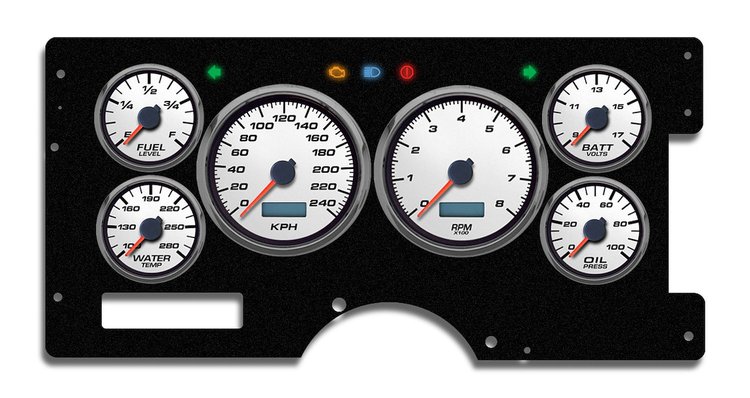

89211-03M Performance Ii Series Direct-Fit Gauge Kit, GM Full-Size Pickup 88-94, White
InfoVehicle Info Needed
NEW VINTAGE USAPART NUMBER: 341-89211-03M

89211-03M Performance Ii Series Direct-Fit Gauge Kit, GM Full-Size Pickup 88-94, White

$87999
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Under-Dash Creeper [40 in. Length]

JEGS

Under-Dash Creeper [40 in. Length]

Part Number : 555-81153
$7999$87.99
You Save$8.00
Wire Crimping Pliers and Stripping Tool

JEGS

Wire Crimping Pliers and Stripping Tool

Part Number : 555-80575
$1399$15.99
You Save$2.00
Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

JEGS

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

Part Number : 555-80569
$899$9.99
You Save$1.00
Digital Multimeter

JEGS

Digital Multimeter

Part Number : 555-W2971
$1999$21.99
You Save$2.00

Direct-Fit Gauges
Direct-Fit Dash Gauge Kit
  • Fits Gm Full-Size Pu 88-94
  • Factory Dash Opening Fit
  • CNC Laminate Mounting Panel
  • Phoenix Direct-Drive Wiring
  • Includes Speedo, Tach, Minor Gauges
  • Color: White
  • Sold As A Kit

    New Vintage USA 89211-03M Features:

    NVU gauge packages for 88-94 full size trucks bring some class to the dash! 6 gauges packed into an NVU exclusive CNC laminate printed cluster bracket with turn signals and indicators. Installs in the factory location and can incorporate the stock shift indicator (PRNDL). Installs using the OE cluster visor for a clean, professional looking installation. Included 0-90 (factory match) fuel gauge. Gauges can be repositioned to your liking and must be wired up by splicing into harness as in most aftermarket installations (not plug-and-play) Programmable speedometers can operate on stock VSS (speed sender) or PCM output; Tachometers can read from HEI, any coil or PCM output.

    Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Titanium bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.

    They say looks are only skin deep, behind the scenes the GENII stepper motor internals offer selectable inputs for fuel gauge (0-90 GM, 73-10 Ford, 240-33 Universal and 16-158 late Ford, other custom programmed options available) with full tank sender dampening. Programmable speedometer operates on ANY pulsed sender with a 3000-64,000 Pulse Per Mile (PPM) input with push-button programming. Programmable tachometer has integrated shift outputs, hour meter and operates on ANY tach signal input from a coil, magneto, CDI (MSD box), PCM (computer), Diesel crank or cam sensor and alternator "W" terminal.

    Kit includes:

    Speedometer, 3-3/8" Programmable electronic 240 kph

    Tachometer 3-3/8"

    Fuel gauge 2-1/16", 0-90 ohm factory match

    Water temperature gauge 2-1/16:

    Oil pressure gauge 2-1/16"

    Voltmeter 2-1/16"

    Oil pressure and water temperature senders

    Bushing kit

    Mounting bracket

    Instruction booklet

    Mounting hardware for gauges

    * Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.

    Specs:
    • Speedometer Gauge Included: Yes
    • Tachometer Gauge Included: Yes
    • Water Temperature Gauge Included: Yes
    • Oil Pressure Gauge Included: Yes
    • Voltage Gauge Included: Yes
    • Fuel Gauge Range: Yes
    • Fuel Sender Included: No
    • Bezel Included: Yes
    • Bracket Included: Yes
    • Speed Sender Included: No
    • Temperature Sender Included: Yes
    • Oil Pressure Sender Included: Yes
    • Wiring Harness Included: No
    • Indicator Lamps: Yes
    • Gauge Style: Analog
    • Gauge Dial Color: White
    • Gauge Number Color: Black
    • Gauge Pointer Color: Red
    • Bezel Finish: Titanium Smoke
    • Gauge Lens: Flat Glass
  • Part TypeGauge
    BrandNEW VINTAGE USA
    Package Height8.0
    Package Width8.0
    Package Length24.0
    Weight5.0 PG
    Part CategoryAccessories
    Wiring Harness IncludedNo
    Gauge Pointer ColorRed
    Bracket IncludedYes
    Gauge Dial ColorWhite
    Oil Pressure Sender IncludedYes
    Water Temperature Gauge IncludedYes
    Bezel FinishTitanium Smoke
    Bezel FinishTitanium Smoke
    Tachometer Gauge IncludedYes
    Lens StyleFlat Glass
    Gauge StyleAnalog
    Gauge Number ColorBlack
    Speedometer Gauge IncludedYes
    Bezel IncludedYes
    Voltage Gauge IncludedYes
    Oil Pressure Gauge IncludedYes
    Temperature Sender IncludedYes
    Indicator LampsYes
    Part FitmentDirect Fit
    Gauge TypeDirect-Fit Gauge Kit
    Fuel Sender IncludedNo
    Vendor Part Number89211-03M
    Package Qty1
    Package TypeEA
