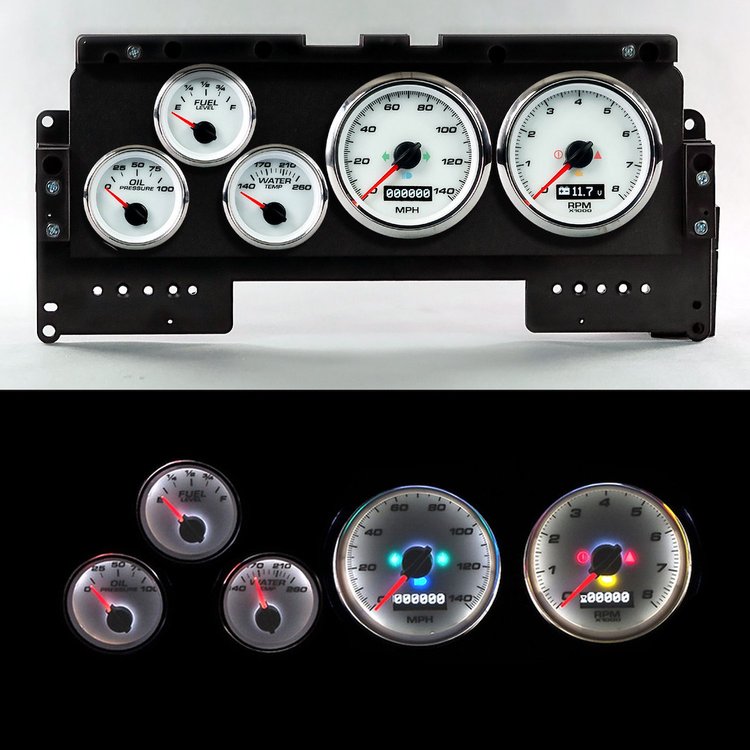

New Vintage USA 92101-03 Features:

Been looking to upgrade that cluster in your F-Series to bring it into this century? Kits for 92-96 Ford Full Size may be just way you are looking for. NVU's unique mounting bracket allows for installation of any NVU gauge style. Fits in the stock location for a clean professional look. All Phoenix Direct Drive kits feature turn signals, hi beam and warning lights built right into the instruments. Select the style that fits the theme of your build, with the widest range of options available anywhere! Kits include a 5- gauge package with volts and other functions displays on the Phoenix Platform's unique OLED screens.

Great style and performance from NVU. The performance line has been a great success over the years for NVU, great OEM style performance graphics look modern and racy without being over the top, a perfect match for Pro-touring builds. Don’t let the good looks fool you, these are the same shock-proof, water-proof durable components we use in our commercial and military lines. Scratch resistant stainless steel bezels, real glass lenses, all make for a great product. white LED perimeter lighting for easy viewing at night.

Looks are only skin deep; all Performance instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a gauge kit.
Looks are only skin deep; all Performance instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a gauge kit.
Looks are only skin deep; all Performance instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a gauge kit.

Included in the kit:

87-91 Ford F/S Truck mounting bracket

Built-in indicators (Turn signal, hi beam, warning lights)

3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input

3-7/16"Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)

Temperature gauge 140-280

Oil pressure gauge 0-100 PSI

2 ea AMP connector harnesses

2 ea Programming button

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

* Speed sender may be required, check your application

• Speedometer Gauge Included: No
• Tachometer Gauge Included: No
• Water Temperature Gauge Included: No
• Oil Pressure Gauge Included: No
• Voltage Gauge Included: No
• Fuel Gauge Range: No
• Fuel Sender Included: No
• Bezel Included: No
• Bracket Included: No
• Speed Sender Included: No
• Temperature Sender Included: No
• Oil Pressure Sender Included: No
• Wiring Harness Included: Yes
• Indicator Lamps: No
• Gauge Style: Analog
• Gauge Dial Color: White
• Gauge Number Color: Black
• Gauge Pointer Color: Red
• Bezel Finish: Stainless
• Gauge Lens: Flat Glass
