New Vintage USA 94421-01M Features:

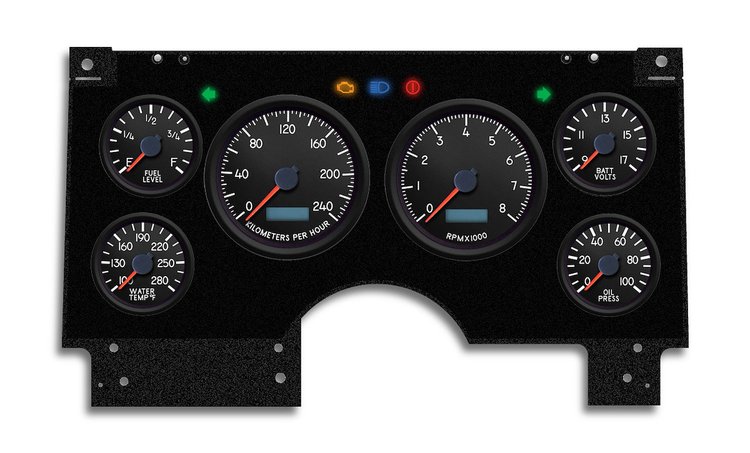

NVU gauge kits for 94-97 S-10/15 Pickup and 95-97 S10/15 Blazer offer the easiest way to upgrade the dash with all the functions you need. Each kit starts with NVU's exclusive ABS Laser-cut mounting system with laminate printed overlay including hidden indicators for turn signals, hi beam, check engine and warning light. Uses the existing stock dash spacer for a clean, factory-installed look.

Installs in the factory location using all OE mountings. Stock cluster spacer is re-used for a factory-installed fit. NVU's exclusive dead-fronted mounting panel hides the indicators when off, then clearly lights the icons when on. Each package includes speedometer, tachometer, voltmeter, water temperature, oil pressure and a factory match 0-90 ohm fuel gauge. Kits are bolt-in and require wiring similar to any gauge kit, some splicing is required (not plug-and-play).

Kits also include temperature sender, pressure sender, bushing kit and detailed instructions. May require speed sender for electronic speedometers, check your application.

Need to add-on? NVU offers a full line of matching gauges in functions form Air-Fuel ratio, oil temp, trans temp and vacuum/boost.

AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether its race, off road or daily driver. LED back lit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and spin-on back clamp with vibration dampening o-ring, waterproof up to 35 PSI from the front,. The AVIATOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles. Great choice for a hot rod with a modern twist Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night

Kit includes:

Speedometer, 3-3/8" Programmable electronic 140 MPH

Tachometer 3-3/8"

Fuel gauge 2-1/16", 0-90 ohm factory match

Water temperature gauge 2-1/16:

Oil pressure gauge 2-1/16"

Voltmeter 2-1/16"

Oil pressure and water temperature senders

Bushing kit

Mounting bracket

Instruction booklet

Mounting hardware for gauges

* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: No
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: Black
• Gauge Number Color: White
• Gauge Pointer Color: Red
• Bezel Finish: Black
• Gauge Lens: Flat Glass
