New Vintage USA 95102-03 Features:

Need to bring the interior up to par with the rest of your truck and want something a little different? NVU gauge packages for OBS GM truck might be just the right fit. With a wide variety of styles to choose from, you can select the kit that fits the theme of your build. Kits install in factory location using stock mountings and can re-use the factory lens carrier for a finished look. Kits include bracket to install any NVU 6 gauge kit with 4-3/8" speedo and tach.

All NVU OBS kits include NVU's exclusive Phoenix Direct Drive system that makes installation easy with great features like built-in indicators, performance timers, shift warning and more.

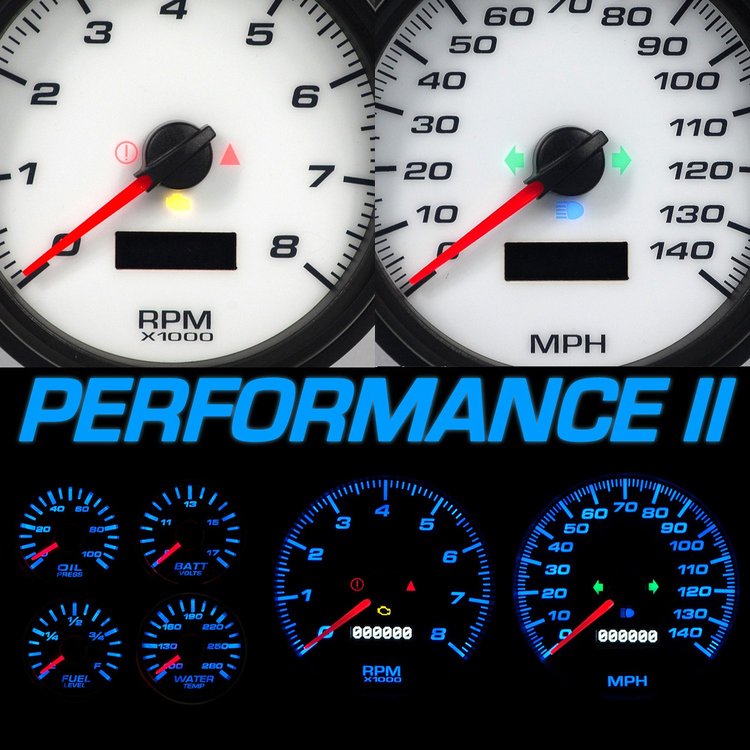

NVU Performance II gauges are a real upgrade to any dash. Modern OE technology behind the scenes all backed by Phoenix technology. Bold blue backlit graphics say updated but without going over the top. Backlit pointers, full sweep minor gauges and glass lenses.

Looks are only skin deep; all Performance instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a 6 gauge kit.

Looks are only skin deep; all Performance instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a 6 gauge kit.

Included in the kit:

95-98 GM Truck mounting bracket

Built-in indicators (Turn signal, hi beam, warning lights)

4-3/8" Speedometer 140 MPH programmable with 1 auxiliary input

4-3/8" Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings

Temperature gauge 140-280

Oil pressure gauge 0-100 PSI

Voltmeter 9-17V

2 ea AMP connector harnesses

2 ea Programming button

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

* Speed sender may be required, check your application

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: Yes
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: White
• Gauge Number Color: Black
• Gauge Pointer Color: Red
• Bezel Finish: Stainless
• Gauge Lens: Flat Glass
