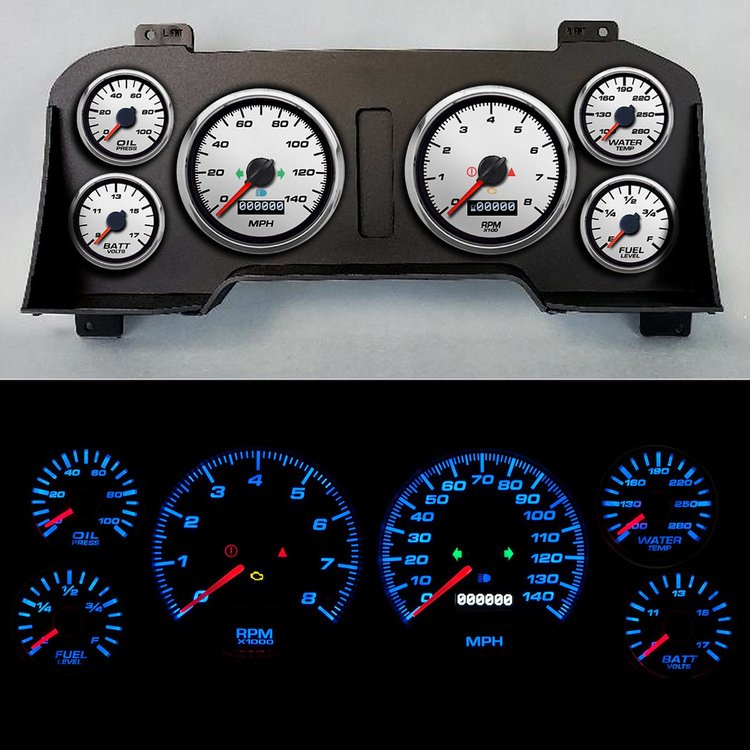

New Vintage USA 98021-03 Features:

Kits for 2nd Gen Dodge ram fit 94-98 Light Duty and 95-99 Heavy duty dashes with the round cluster openings. Bring your Ram dash up to date and match the theme of your build with NVU's kits to replace the factory cluster. Finally, a solution for Ram truck owners that have been building their trucks or just want a mild upgrade. Kit fits automatic and manual clusters, gas and diesel kits are available.

Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Stainless or bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.

Looks are only skin deep; all Performance II instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6-gauge kits with OLED screens feature Phoenix Direct Drive technology, by far the easiest way to wire up a 6-gauge kit.

Included in the kit:

2ND GEN RAM Truck mounting bracket

Built-in indicators (Turn signal, hi beam, warning lights)

3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input

3-7/16"Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge, programmable (220-20 Ω factory-match)

Temperature gauge 140-280

Oil pressure gauge 0-100 PSI

Voltmeter 9-17V

2 ea AMP connector harnesses

2 ea Programming button

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

* Speed sender may be required, check your application

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: No
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: White
• Gauge Number Color: Black
• Gauge Pointer Color: Red
• Bezel Finish: Stainless
• Gauge Lens: Flat
