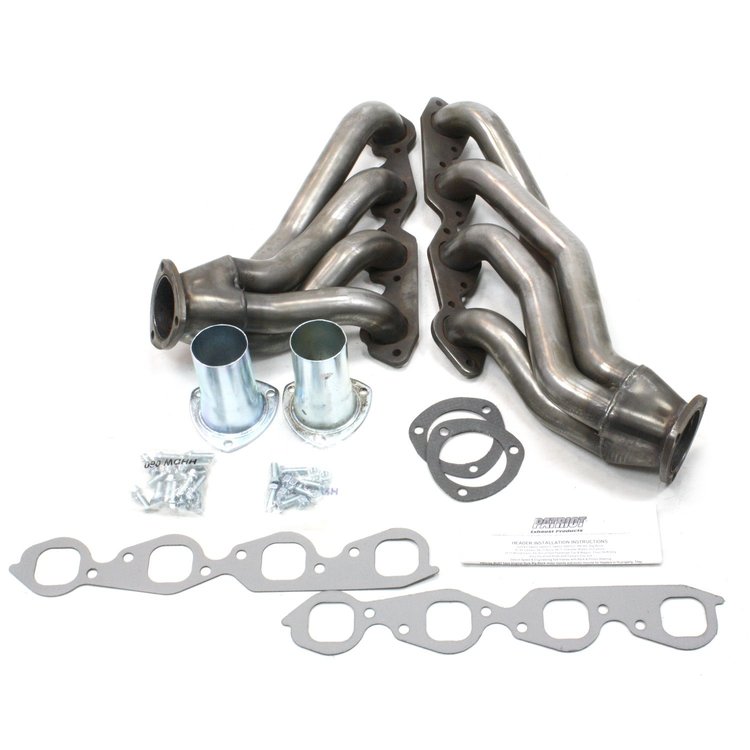

GM Specific Fit Headers 1965-1974 Full Size Passenger Car

Vehicle Info Needed

GM Specific Fit Headers 1965-1974 Full Size Passenger Car

Name: GM Specific Fit Headers 1965-1974 Full Size Passenger Car
Brand: PATRIOT EXHAUST
SKU: 737-H8013
Price: 334.08 USD
Availability: InStock

^$334⁰⁸$371.20You Save$37.12

Ships Tomorrow

Lowest Price Guarantee

GM Specific Fit Headers

1965-1974 Full Size Passenger Car

1967-1981 Camaro

1968-1977 Chevelle, Malibu

1968-1979 Nova

396-502 Big Block

1-7/8'' Primary Tubes

3'' Collector

SAP Port Shape

Raw Finish

Fits:

1967-1981 Camaro
1968-1977 Chevelle/Malibu/El Camino
1970-1977 Monte Carlo
1968-1979 Nova
1965-1974 Passenger Car/Wagon/Nomad

Notes:

Shorter design for maximum ground clearance on cars lowered up to 4'.
Not recommended for generation six 502cid engines with aluminum heads.
Fits manual and auto trans floor shifts only.
Big block frame stands and motor mounts must be used to insure proper engine location and header fit.

			Automatic		Manual
A/C	P/B	P/S	Column	Floor	Column	Floor
Y	Y	52	N	Y	N	Y

52 - Will not fit Saginaw close ratio with 825 power steering box.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Durable Performance Headers with Excellent Flow

Patriot Specific-Fit GM Car Headers are built from mandrel-bent mild steel tubing and deliver exceptional flow to improve your engine’s throttle response and engine efficiency for maximum performance. These direct-fit headers feature surface-machined steel flanges, excellent ground clearance and are available your choice of a black hi-temp, raw, or metallic ceramic coating for maximum durability and heat control. All header kits come complete with hardware, collector reducers, and gaskets.

Part TypeHeader

Product LinePatriot GM Car Specific Fit Headers

BrandPATRIOT EXHAUST

Package Height11.0

Package Width15.0

Package Length30.0

Weight26.8 PG

Part CategoryPerformance Parts

PositionN/A

Header FinishNatural

QuantitySold as a pair

Bolts/Studs IncludedYes

Cylinder Head Port ShapeSAP

Transmission Mount IncludedNo

Header MaterialSteel

Gaskets IncludedYes

Weld-UpNo

Brake SystemPower

Collector Attachment3-bolt flange

Flange StyleStandard

TunedNo

Collector Diameter3 in (76.2 mm)

Motor Mounts IncludedNo

Part FitmentSemi Universal

Reducers IncludedYes

Primary Tube Gauge16-gauge

Header StyleMid-length

Cross Over Pipe IncludedNo

Catalytic Converter(S) IncludedNo

Primary Tube Diameter1.875 in (47.6 mm)

Vendor Part NumberH8013

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
