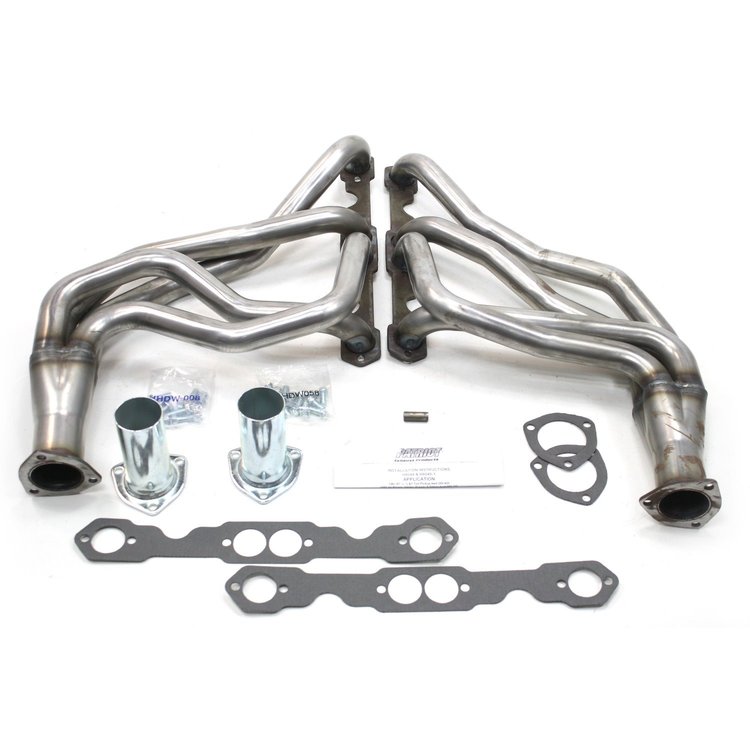

GM Specific Fit Headers 1967-1987 4WD 1/2, 3/4, 1 Ton Pickup, Blazer/Jimmy, Yukon, Tahoe
Product Discontinued
PATRIOT EXHAUSTPART NUMBER: 737-H8049

GM Specific Fit Headers 1967-1987 4WD 1/2, 3/4, 1 Ton Pickup, Blazer/Jimmy, Yukon, Tahoe

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Best Value
Save
$13736
Long Tube Headers Fits Select 1967-1992 GM 2WD and 4WD Trucks [Small Block Chevy]

555-30055

Long Tube Headers Fits Select 1967-1992 GM 2WD and 4WD Trucks [Small Block Chevy]

$16999

GM Truck Specific Fit Headers
GM Specific Fit Headers
  • 1967-1987 4WD 1/2, 3/4, 1 Ton Pickup, Blazer/Jimmy, Yukon, Tahoe
  • 265-400 Small Block
  • 1-5/8'' Primary Tubes
  • 2-1/2'' Collector
  • Round Port Shape
  • Raw Finish

    Fits:
    • 1967-1987 4WD 1/2-Ton, 3/4-Ton, 1-Ton Pickup
    • 1969-1991 4WD Blazer/Jimmy, Yukon, Tahoe
    Notes:
    • Will not fit angle plug heads.
    • Collector reducers are available to accommodate oxygen sensor on 1980 and later models 737-H7232.

    AutomaticManual
    A/CP/BP/SColumnFloorColumnFloor
    96YYYYNN

    96 - Requires A/C bracket 737-7608. On 1979 and later vehicles with short compressors, use stock bracket.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

      • Patriot GM Truck Specific Fit Headers are built with surface machined thick steel flanges for a great seal and mandrel bent mild steel tubing. Patriot headers are available raw or with metallic ceramic coating. Unlike paint or chrome, metallic ceramic coating is easy to keep clean, resist rust and corrosion and will not discolor. Metallic ceramic coating also reduces underhood temperatures. All Patriot headers come with installation hardware, collector reducers, gaskets and instructions.
    Part TypeHeader
    Product LinePatriot GM Truck Specific Fit Headers
    BrandPATRIOT EXHAUST
    Package Height11.0
    Package Width20.5
    Package Length39.0
    Weight27.15 PG
    Part CategoryPerformance Parts
    Body TypeVarious - Application Specific
    PositionN/A
    Header FinishNatural
    QuantitySold as a pair
    Bolts/Studs IncludedYes
    Cylinder Head Port ShapeRound
    Transmission Mount IncludedNo
    Header MaterialSteel
    Gaskets IncludedYes
    Weld-UpNo
    Brake SystemPower
    Collector Attachment3-bolt flange
    Flange StyleStandard
    TunedNo
    Collector Diameter2.5 in (63.5 mm)
    Motor Mounts IncludedNo
    Part FitmentSemi Universal
    Reducers IncludedYes
    Primary Tube Gauge18-gauge
    Header StyleFull-length
    Cross Over Pipe IncludedNo
    Catalytic Converter(S) IncludedNo
    Primary Tube Diameter1.625 in (41.3 mm)
    Vendor Part NumberH8049
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
