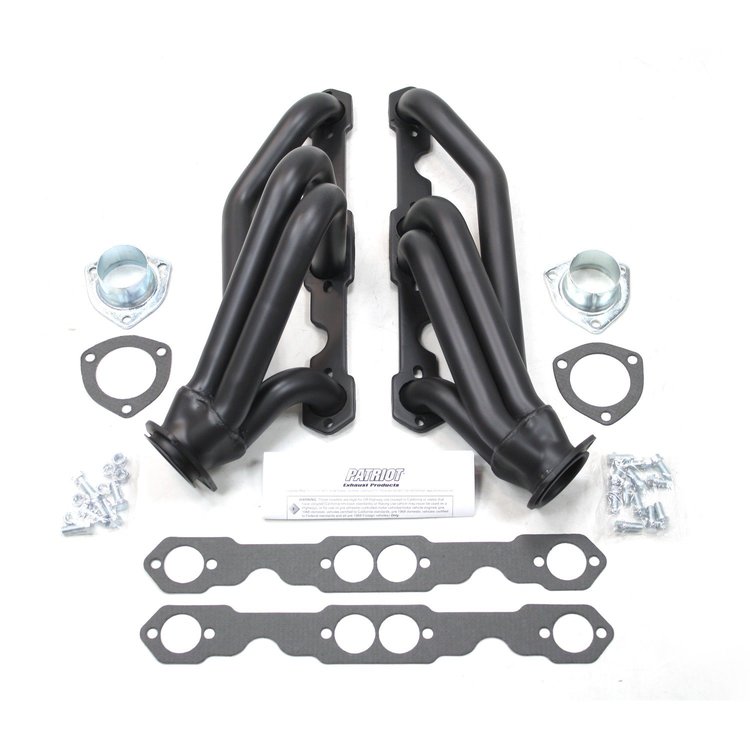

GM Specific Fit Headers 1982-1995 4WD Blazer, Jimmy, S10 & S15
InfoVehicle Info Needed
PATRIOT EXHAUSTPART NUMBER: 737-H8051

GM Specific Fit Headers 1982-1995 4WD Blazer, Jimmy, S10 & S15

$27703$307.81You Save$30.78
Lowest PriceLowest Price Guarantee

GM Truck Specific Fit Headers
GM Specific Fit Headers
  • 1982-1995 4WD Blazer, Jimmy, S10 & S15
  • 265-400 Small Block Engine Swap Header
  • 1-1/2'' Primary Tubes
  • 2-1/2'' Collector
  • Round Port Shape
  • Raw Finish

    Fits:
    • 1982-1995 Blazer/Jimmy 4WD
    • 1982-1995 S10/S15 4WD
    Notes:
    • Will not fit angle-plug heads.
    • Must use Stealth or equivalent motor mount kit.
    • Must replace oil pan with a Canton 16-100 two piece or 16-100T one piece style rear main seal.

    AutomaticManual
    A/CP/BP/SColumnFloorColumnFloor
    YYYYYNN

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeHeader
    BrandPATRIOT EXHAUST
    Package Height8.1
    Package Width17.1
    Package Length20.7
    Weight17.41 PG
    Part CategoryPerformance Parts
    PositionN/A
    Header FinishPainted
    QuantitySold as a pair
    Bolts/Studs IncludedYes
    Cylinder Head Port ShapeRound
    Transmission Mount IncludedNo
    Header MaterialSteel
    Gaskets IncludedYes
    Weld-UpNo
    Brake SystemPower
    Collector Attachment3-bolt flange
    Flange StyleStandard
    TunedNo
    Collector Diameter2.5 in (63.5 mm)
    Motor Mounts IncludedNo
    Part FitmentSemi Universal
    Reducers IncludedYes
    Primary Tube Gauge18-gauge
    Header StyleShorty
    Cross Over Pipe IncludedNo
    Catalytic Converter(S) IncludedNo
    Primary Tube Diameter1.5 in (38.1 mm)
    Vendor Part NumberH8051
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
