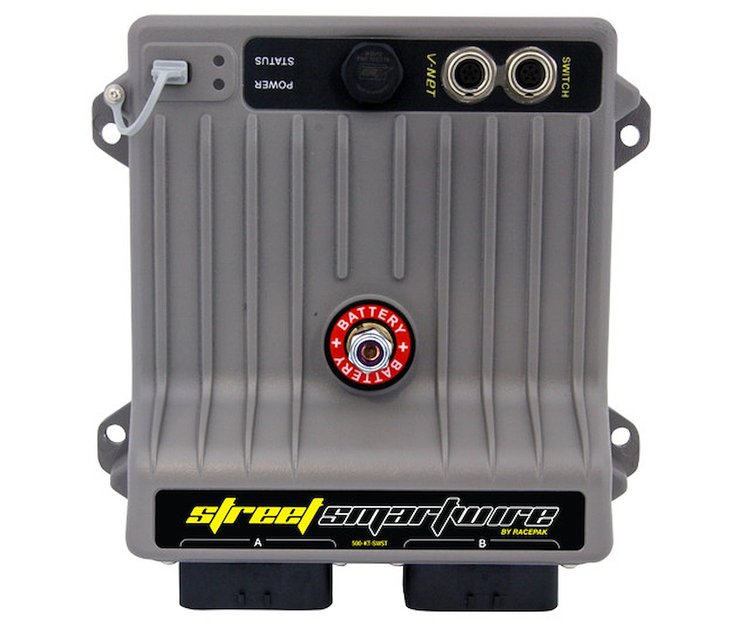

500-KT-SWST Street Smartwire Power Control Module

Name: 500-KT-SWST Street Smartwire Power Control Module
Brand: RACEPAK
SKU: 806-500-KT-SWST
Price: 2399.95 USD
Availability: InStock

^$2,399⁹⁵

Ships on 09/08/2026

Lowest Price Guarantee

Solid-state power distribution module w/integrated CAN

Street or V-Net equipped vehicles

30 programmable output channels

USB programmable w/Datalink II software

Includes:

SmartWire PDM unit
16-channel switch module
USB cable

The 500-KT-SWST Street Smartwire Power Control Module provides a compact, programmable alternative to traditional relays and fuses, engineered for streamlined vehicle wiring. Featuring 30 user-definable solid-state outputs and 12 configurable inputs, it delivers 125 amps of total output capacity. When used with Racepak’s V-Net data system, the Smartwire integrates seamlessly with existing sensors, loggers, and modules. Programming is handled via USB and Racepak's Datalink II software. This kit includes a 16-channel switch module for manual input, reducing bulk through a single cable interface. Additional modules can be connected via jumper cable for expanded control.

Racepak 500-KT-SWST Features:

30 solid-state output channels (8x 20A, 22x 10A max)
125 amp total current capacity
12 hardwired switched inputs (voltage or ground triggered)
CAN bus support for V-Net integration and switch modules
Quick 3.0 ms response time
Test mode for input/output verification
Internal short circuit and thermal overload protection
Compact design: 6 in. x 5.5 in. x 1.5 in.
Includes 16-channel switch module and USB cable

Emissions Note:

This part is legal for sale or uses on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Racepak's Smartwire Power Control Modules are the easiest way to wire any vehicle while adding modern electronic features and functions. They serve as the vehicle's power distribution center, with a direct main power connection from the battery to the module. A solid state design eliminates traditional fuse panels, breakers and relays, reducing wiring complexity and weight in the vehicle, providing a more quicker and efficient electronic system. Inputs and outputs are user-definable, enabling complete control of a vehicle's power needs and accessories. These Smartwire Power Control Modules also connect seamlessly to Racepak data recorders and display dashes to allow monitoring of SmartWire functions.
