Flow Meter
Turbine-Style Fuel/Clutch Flow Sensor
  • -10 AN Stainless Construction
  • 2–25 GPM Range
  • Methanol Compatible

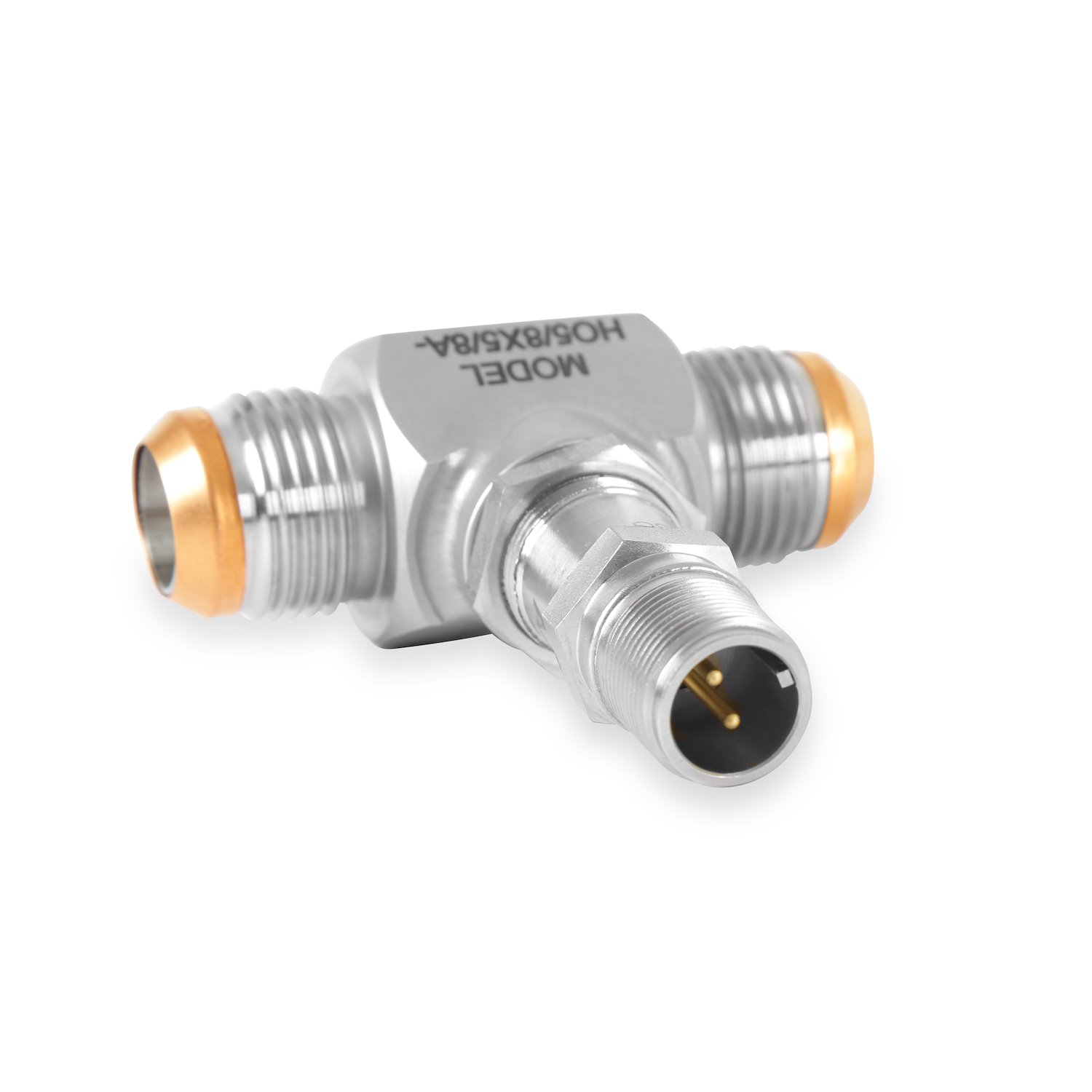

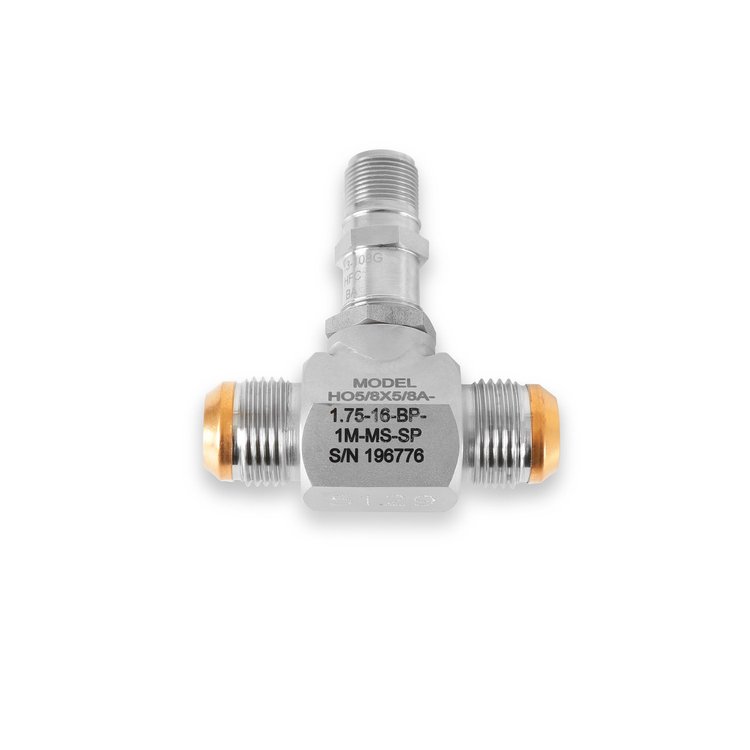

    The 800-FM-AN10-SS Stainless Flow Meter is a turbine-style sensor for monitoring fuel or hydraulic clutch systems in high-performance applications. Designed for -10 AN systems, it provides accurate flow readings from 2–25 GPM and is fully compatible with methanol-based fuels. Ideal for confirming fuel pump health, verifying timer operation, and tracking lean-out behavior when paired with Racepak DataLink math channels.

    Racepak 800-FM-AN10-SS Features:

    • Stainless steel -10 AN construction
    • Supports 2–25 GPM flow rates
    • Compatible with methanol fuels
    • Works with Racepak data systems and math channels
    • Suitable for fuel and hydraulic clutch applications

    Emissions Note:

    This part is legal for sale or uses on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Racepak's V-Net (Vehicle Network) technology is a "smart data" transfer network that gives you the ability to transmit multiple signals from each sensor using a single cable. This network creates a system where individual components interact with each other; providing you with a simpler, more compact system. Whether using a single gauge set-up or a full-blown data acquisition system, all components are attached using modular snap-together connectors.

    Show More

    Racepak's Sensors, Modules and Controllers are designed for use with Racepak V-Series data loggers and dashes, or as direct replacements and are available in a wide range of monitoring parameters. Each item is made to meet or exceed OE specifications and constructed of the highest-quality materials for long-term durability. Engineered for the harsh conditions of the racing environment.

    Features:

    • For RacePak V-Net Series Data Loggers, Recorders and Dashes.
    • Smart Data Transfer.
    • Simple and Compact.
    • For Use With Drag Racing, Off Road/Closed Course, and Land Speed Applications.
    Part TypeData Acquisition
    Product LineRacepak Sensors, Modules and Controllers
    BrandRACEPAK
    Package Height1.35
    Package Width4.05
    Package Length6.0
    Weight0.605 PG
    Part CategoryPerformance Parts
    Turbine-TypeYes
    Fuel FlowYes
    Hydraulic Clutch FlowYes
    Part FitmentSemi Universal
    Datalink CompatibleYes
    Vendor Part Number800-FM-AN10-SS
    Package Qty1
    Package TypeEA
