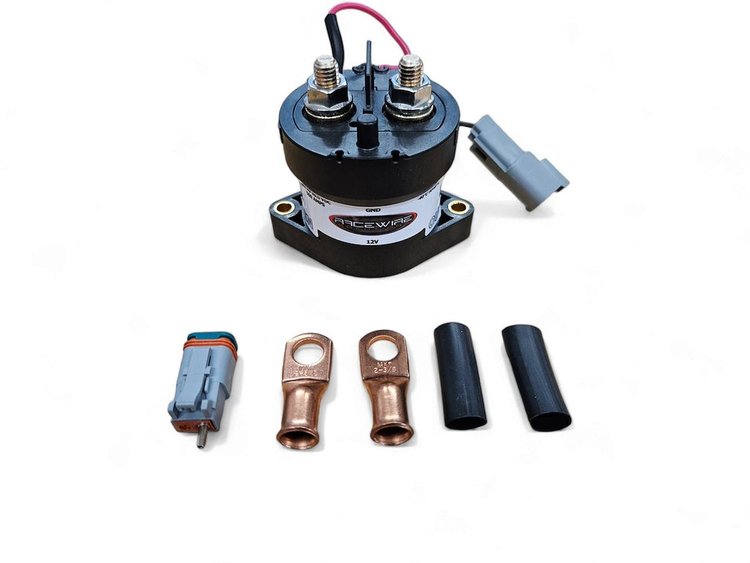

The RaceWire Solutions Battery Cut-Off Switch provides reliable battery disconnect control for high-performance vehicles and racing applications. This continuous-duty relay is rated for 300 A with 1500 A surge capacity and helps replace vibration-prone mechanical push-pull kill switches. It is hermetically sealed and waterproof, uses a low-mA ground signal through the included Deutsch-Style 2-pin connector, and measures 2-3/8 in. x 3.75 in. for flexible mounting.

RaceWire Solutions 300A-CD-HD1 Battery Cut-Off Switch Features:

• 300 A Continuous / 1500 A Surge: Handles high-current loads in performance vehicles while supporting strong in-rush demand at startup.
• Hermetically Sealed Relay: Waterproof construction helps protect the disconnect system from moisture and harsh conditions.
• Remote Mini E-STOP Mounting: Replaces vibration-prone mechanical push-pull switches and needs one 3/8 in. rear hole.
• Low-mA Ground Activation: Includes a Deutsch-Style 2-pin connector, clicks on command, and draws no power once activated.
• Compact 2-3/8 in. X 3.75 in. Body: Fits tight installation spaces and includes two 2 ga copper ring terminals.
