SSR200-HD1 Solid-State Battery Disconnect [200A, 1 HD E-Stop, Deutsch-Style Connector]
InfoVehicle Info Needed
RACEWIRE SOLUTIONSPART NUMBER: 732-SSR200-HD1

SSR200-HD1 Solid-State Battery Disconnect [200A, 1 HD E-Stop, Deutsch-Style Connector]

$45000
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
Dielectric Grease, 8 oz. Brush Top Bottle

JEGS

Dielectric Grease, 8 oz. Brush Top Bottle

Part Number : 555-28021
$1899$20.99
You Save$2.00
Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

JEGS

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

Part Number : 555-80569
$899$9.99
You Save$1.00
Digital Multimeter

JEGS

Digital Multimeter

Part Number : 555-W2971
$1999$21.99
You Save$2.00

Solid-State Battery Disconnect
  • 200A Disconnect Replaces Vibration-Prone Mechanical Push-Pull Switches
  • Compact 4 in. X 5.25 in. Footprint
  • Includes 1 HD E-Stop and Deutsch-Style Connector
  • Sold Individually

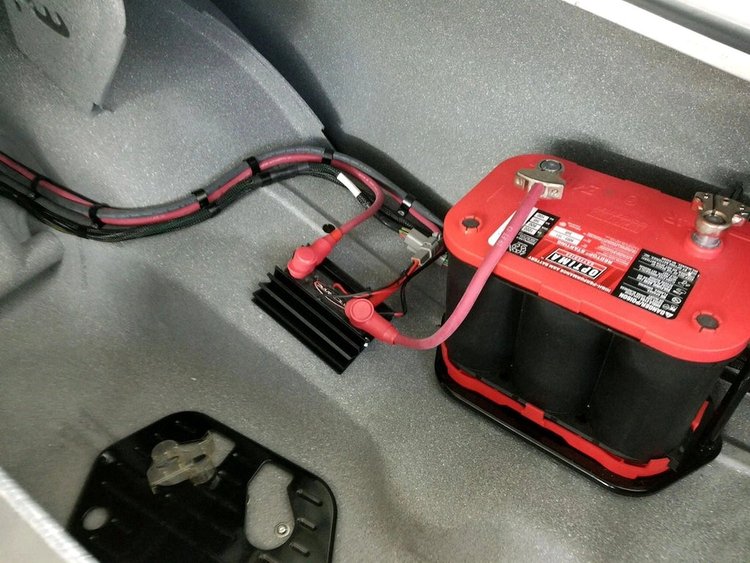

    The RaceWire Solutions Battery Cut-Off Switch provides a solid-state battery disconnect for race cars, replacing bulky mechanical push/pull kill switches with a compact, vibration-resistant design. This 200A unit is capable of 300A, measures 4 in. X 5.25 in., and allows flexible in-vehicle mounting while requiring only one 3/8 in. hole for the mini kill switch. Includes two 2 ga copper ring terminals, a mating 2-pin Deutsch-Style connector, and 1 HD E-Stop.

    RaceWire Solutions SSR200-HD1 Battery Cut-Off Switch Features:

    • 200A / 300A capacity: Solid-state disconnect handles 200A service with 300A capability for dependable race car battery shutoff.
    • 4 in. X 5.25 in. footprint: Compact housing fits tight installations with front- or rear-mounted batteries and crowded tank layouts.
    • Single 3/8 in. rear hole: Remote mini kill switch setup reduces body drilling and allows flexible in-vehicle switch placement.
    • Vibration-resistant solid-state design: Eliminates issues common to mechanical push-pull switches for more consistent shutoff control.
    • Kit-ready connection hardware: Includes two 2 ga copper ring terminals, 2-pin Deutsch-Style connector, and 1 HD E-STOP.
  • Part TypeBattery Cut-Off Switch
    BrandRACEWIRE SOLUTIONS
    Package Height5.0
    Package Width7.0
    Package Length7.0
    Weight4.0 PG
    Part CategoryPerformance Parts
    Amp Rating200A
    Switch TypeSolid-state
    QuantitySold individually
    Connectors IncludedYes (Deutsch)
    Part FitmentSemi Universal
    Vendor Part NumberSSR200-HD1
    Package Qty1
    Package TypeEA
