Breakdown of Included Items

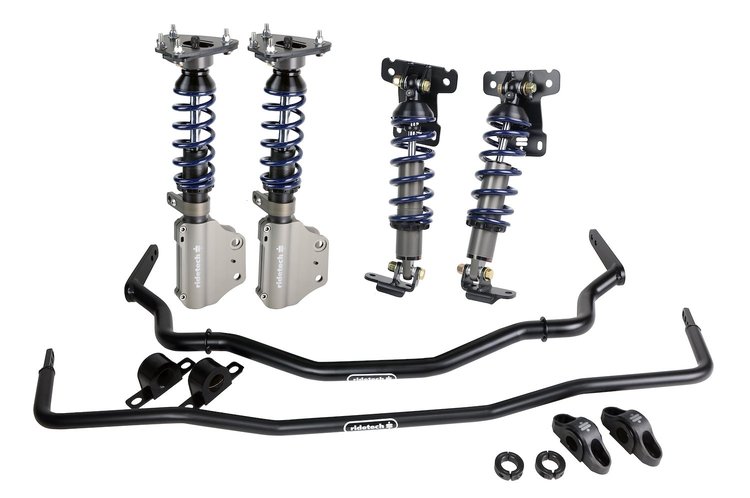

Ridetech 12270201 HQ Series Coil-Over Kit Includes:

• HQ Series Front Coil-Overs 12273210:
  • Fox Factory shock internals and valving improve handling but retain factory ride
  • Lightweight forged-aluminum monotube shock bodies provide excellent strength
  • 24-position rebound adjustable
  • Hyperco coil springs provide consistent spring rates
  • Increased caster/camber adjustment and range
    • Caster Range: + 7.5 to + 8.5 degrees
    • Camber Range: - 2.5 to + .25 degrees
    • Camber Range Extreme w/slug flipped: - 1.0 to - 4.25 degrees
  • Capable of 1.5-2.5 in. of drop from OEM for improved center of gravity
  • Rubber isolated spherical bearings to minimize road noise
  • Anodized gunmetal black and gray finish w/blue coil springs
• HQ Series Rear Coil-Overs 12276210:
  • Fox Factory shock internals and valving improve handling but retain factory ride
  • Lightweight forged-aluminum monotube shock bodies provide excellent strength
  • 24-position rebound adjustable
  • Hyperco coil springs provide consistent spring rates
  • Capable of 1.5-2.5 in. of drop from OEM for improved center of gravity
  • Rubber isolated spherical bearings to minimize road noise
  • Anodized gunmetal black and gray finish w/blue coil springs
• Front Sway Bar 12279120:
  • 2-position adjustable to dial-in bar stiffness for ride height, spring rate, tire compound, intended track surface, or discipline
  • Bar Dimensions: 35 mm (1.375) diameter x .250 in. wall thickness
  • First setting = 500 ft. lbs. Second setting = 616 ft. lbs.
  • Reuses OEM end-links to connect sway bar to suspension
  • Black satin powdercoat finish

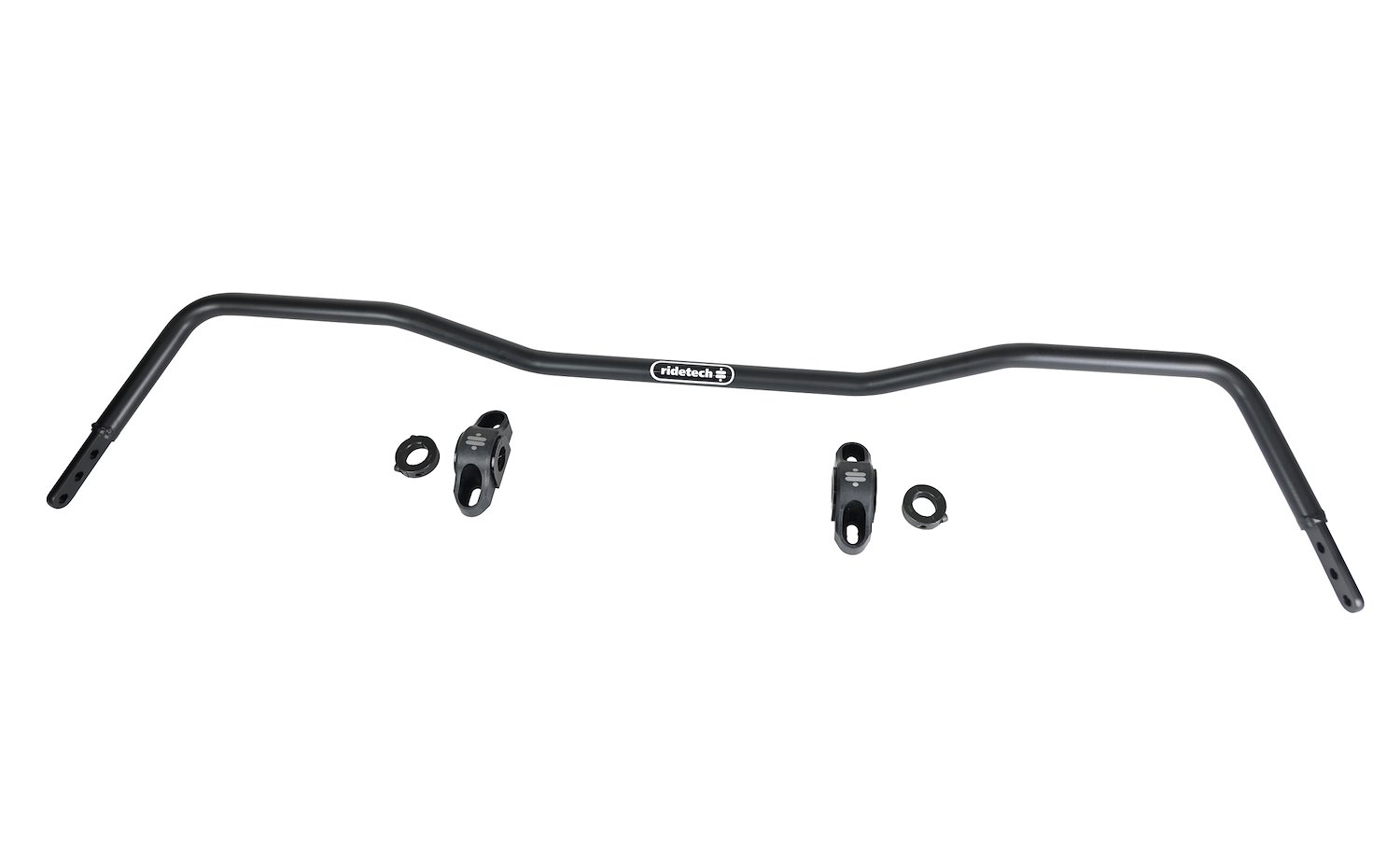

• Rear Sway Bar 12279122:
  • 3-position adjustable to dial-in bar stiffness for ride height, spring rate, tire compound, intended track surface, or discipline
  • Bar Dimensions: 25.4 mm (1 in.) bar thickness x .125 in. wall thickness
  • First setting = 165 ft.lbs. Second setting = 210 ft. lbs. Third setting = 264 ft.lbs.
  • Reuses OEM end-links to connect sway bar to suspension
  • Black satin powdercoat finish for corrosion resistance and durability
